About this item

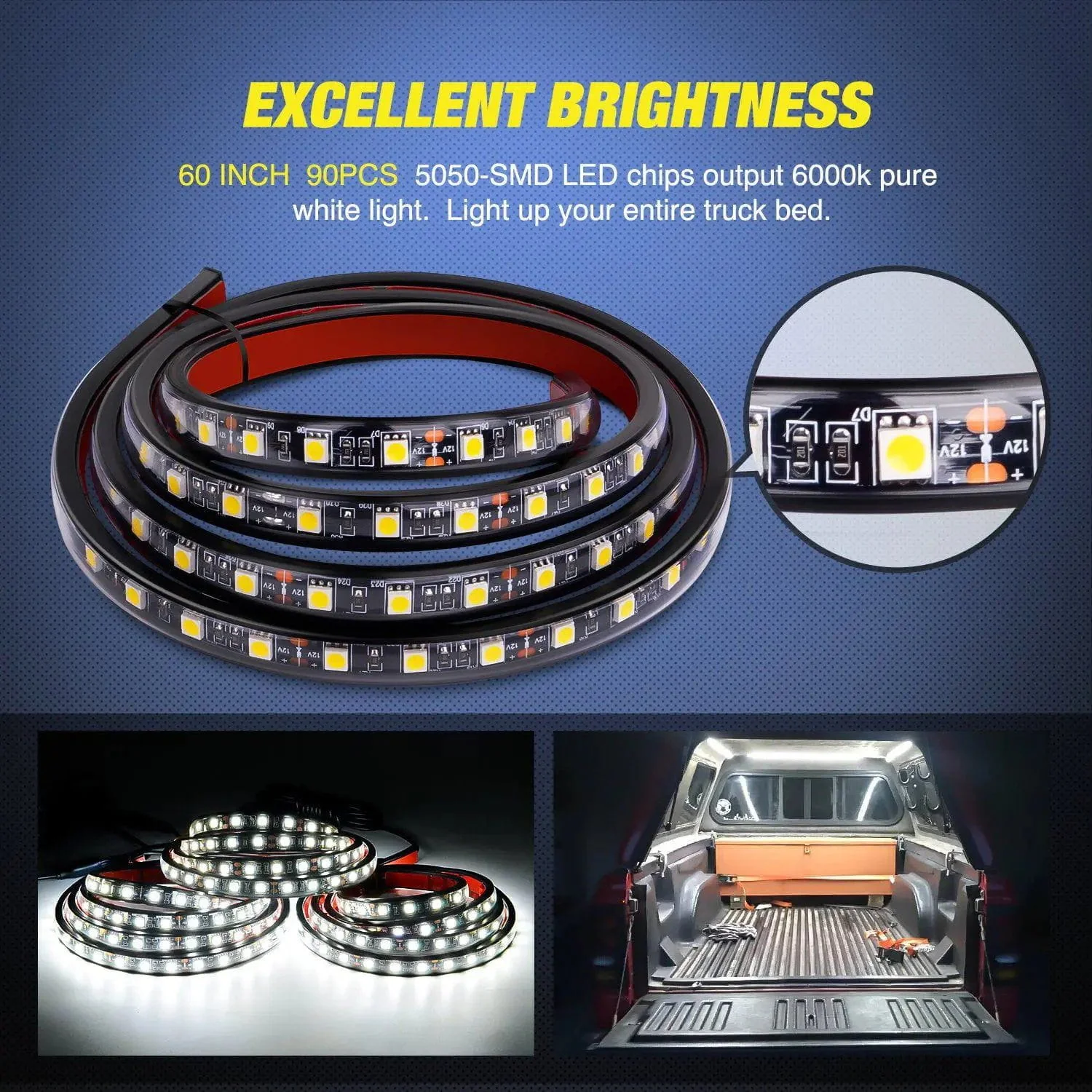

- Impressive Brightness: The 3PCS light strip includes 270 PCS 5050-SMD LED chips, and outputs a 3900LLM 6000K super bright white light to light up your entire truck bed.
- Quick Installation: Peel and stick, the self-adhesive tape with a tough-as-nails adhesive enhancer for strong sticking. You can also add on the included mounting hardware for extra security.

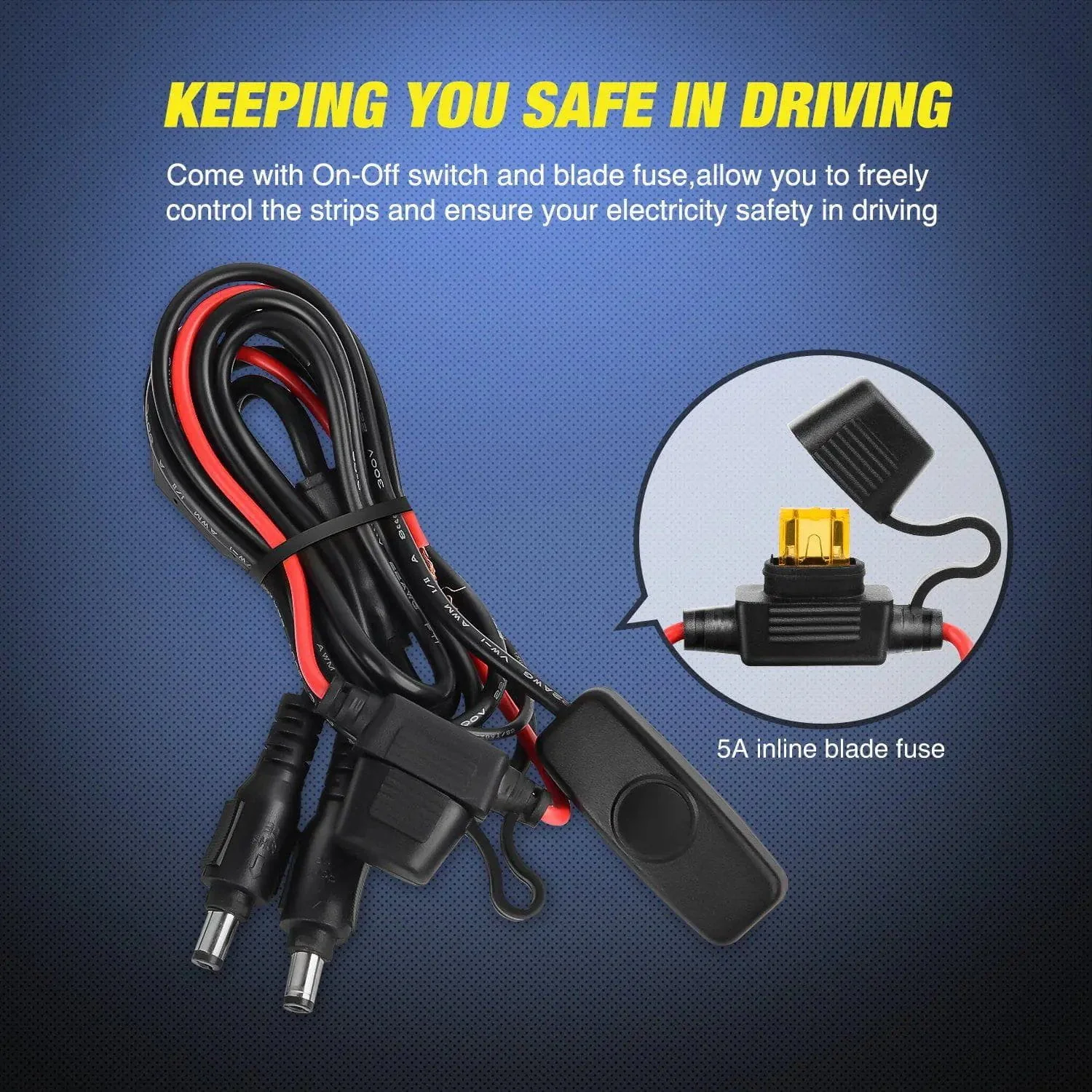

- Ease and Safe Electrical Hook-up: Come with a splitter cable, 5A inline blade fuse, on/off switch, extension cable, and mounting hardware for all your wiring needs. Always ensure circuit safety for your on-road driving.
- Flexible & Durable Design: The light strip is in IP67 sealed housing, well protect strip against raindrops, dirt, and sand, super durable and flexible with up to 30, 000 hrs lifespan

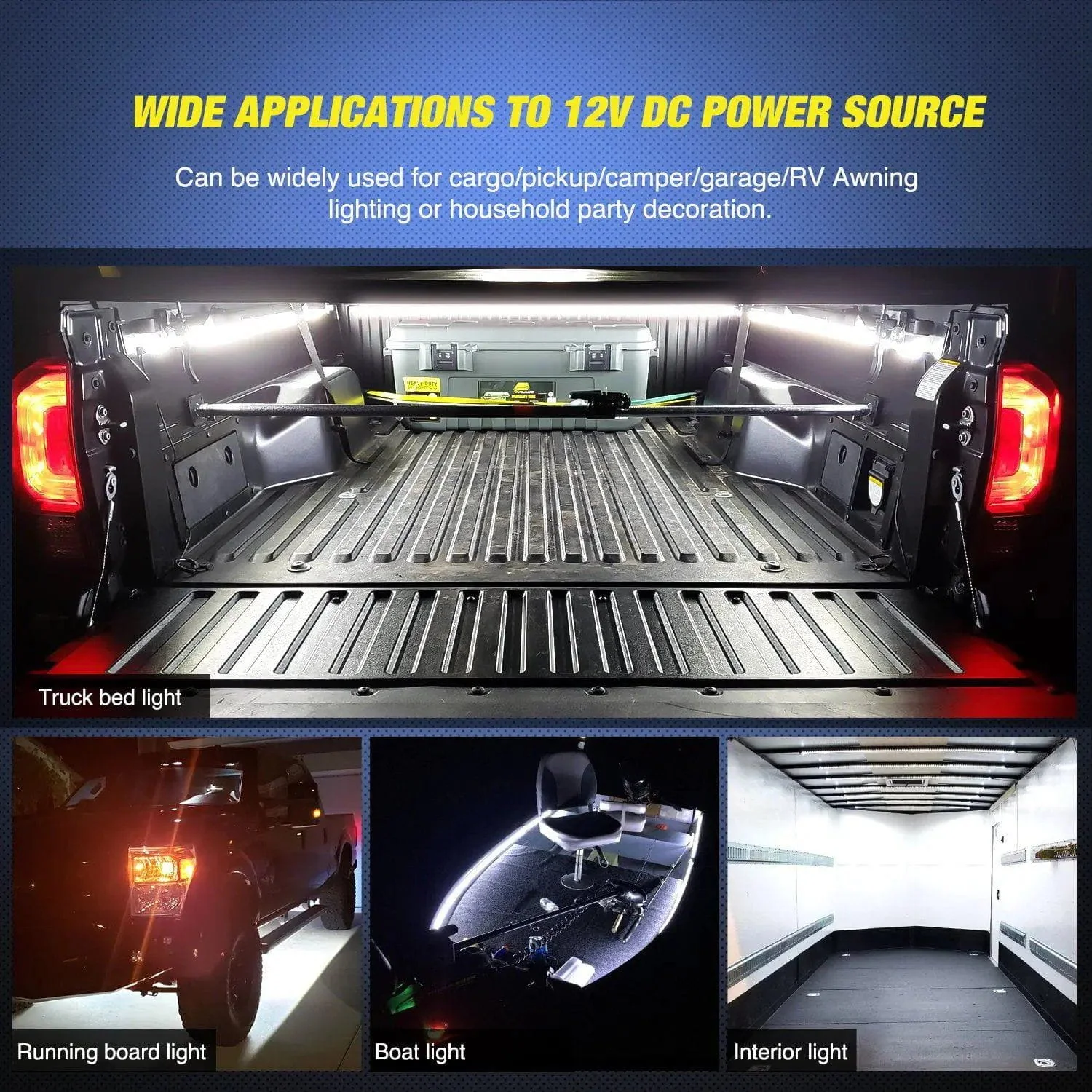

- Wide Application: Can be widely used for RV Awning lights, truck bed lights, step bar led lights, side door lights, etc.
90PCS 5050-SMD LED chips, the LED lumen is 20-22LM per LED. It has IP67 sealed housing that can well protect LED strips against raindrops, and snow and is super durable and flexible. It comes with an extension wire that can pretty much assure that you will never be short of wire length. Its operating voltage is 12V DC. The package includes all the following:
- 3x LED light strip with wire bundle
- 1x on/off switchblade fuse wire bundle
- 1x Extension wire to a power source
- 1x hardware pack
- 1x user manual
Features

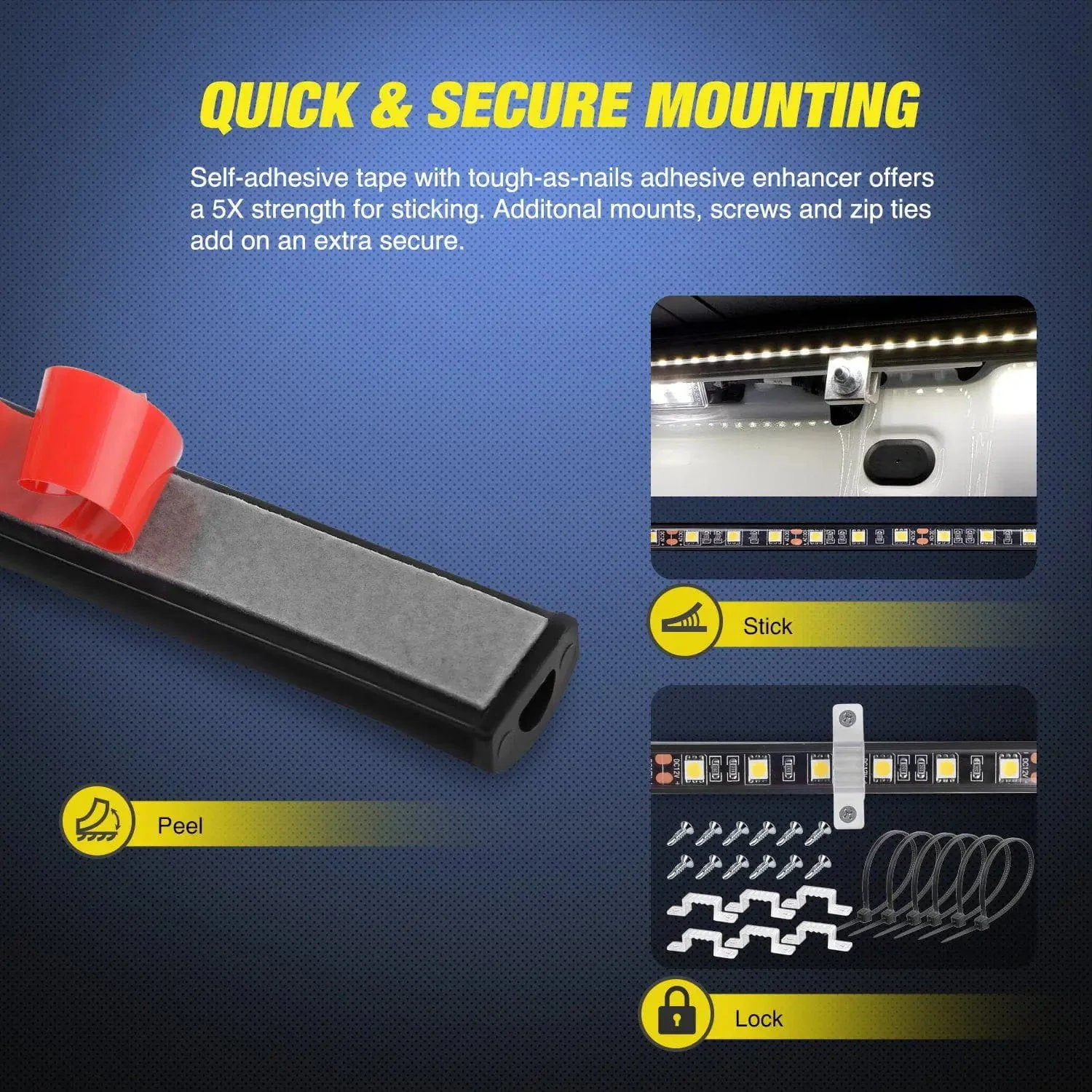

Light Strip Mounting
Peel the tape at the back of the light strips.
Kindly stick the light strips to each side of the truck bed.
Use the extra mounting hardware to fix the light strip and use the zip tie to tie and clean the wire.
Updates: New package will come with 9 clear brackets, 3 for each light strip for more secure installation.
Electrical Hook-up
Find the splitters cables on each light strip then connect them.
Find the red & black wire on the on/off switchblade fuse wire bundle, and the extension wire bundle, and connect red to red, and black to black by using the crimp cap terminals we provided in the hardware pack.
Connect the red and black wire in the extension wire bundle to a power source, red to positive, black to negative.
Use the on/off push button switch to turn on/off the light
Applications
User Manual
| Weight | 0,748 kg |
|---|---|
| Dimensions | 25 × 21 × 5,5 cm |
