About this item

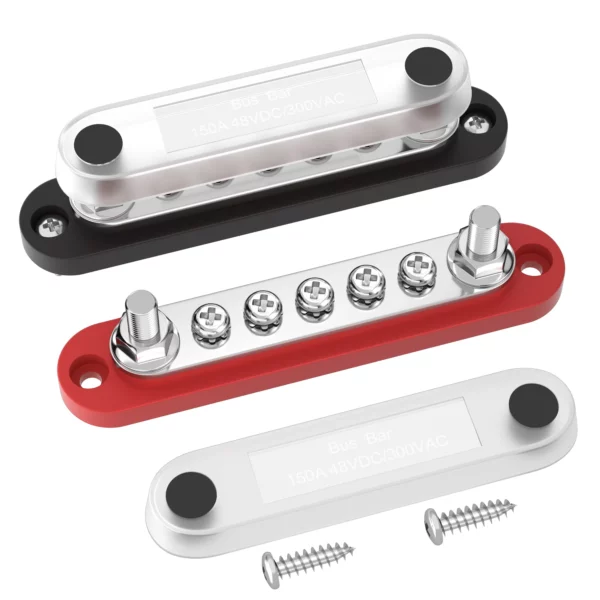

【Terminal】- Positive and negative 5 studs dc bus bar, each battery busbar terminal block includes 5 x M8 (5/16″) terminal studs design, it’s stainless steel material.
【Rating】- This marine 12V power distribution block can handle voltage @ Max 300V AC, 48V DC, and continuous amperage @ Max 130A AC, 150A DC.
【Round Corner Base】 – This electrical busbar terminal block is unique round corner base design, which makes the battery distribution block unique and special, looks more extraordinary compared with other busbars.
【More Open Area Design Cover】 – The cover of this marine bus bar will allow 180° wire lug installation and can meet variety kinds of installation methods of end terminals.
【Application】 – This battery distribution block busbar uses copper plates and stainless steel terminals as conductors, which enables the distribution block to work in extreme environment, suitable for automotive, car, RVs, trucks, marine, boat, solar energy, etc.

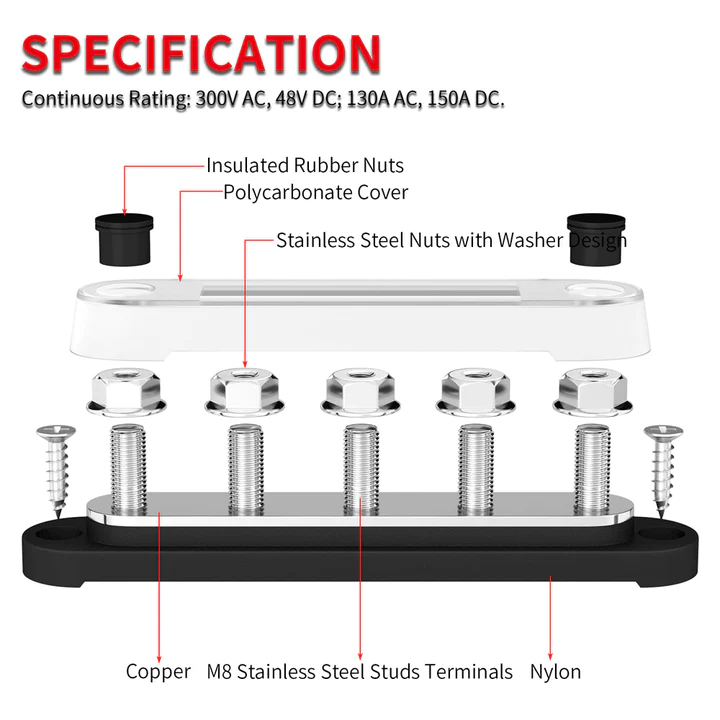

Specifications for this item
| Part NO | BB150-T5M8-C |
| Connection Type | Red for Positive Black for Negative |
| Terminal Studs | 5 x M8 (5/16″) |
| Max Voltage | 300V AC, 48V DC |
| Max Continuous Amperage | 130A AC, 150A DC |
| Base Material | Nylon |
| Plate Material | Copper |
| Terminals Material | Stainless Steel |
| Cover Material | Clear Polycarbonate |
| Overall Dimension | 150mm x 28mm x 35mm (LxWxH) |
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Colors | Rautt, Svart |
