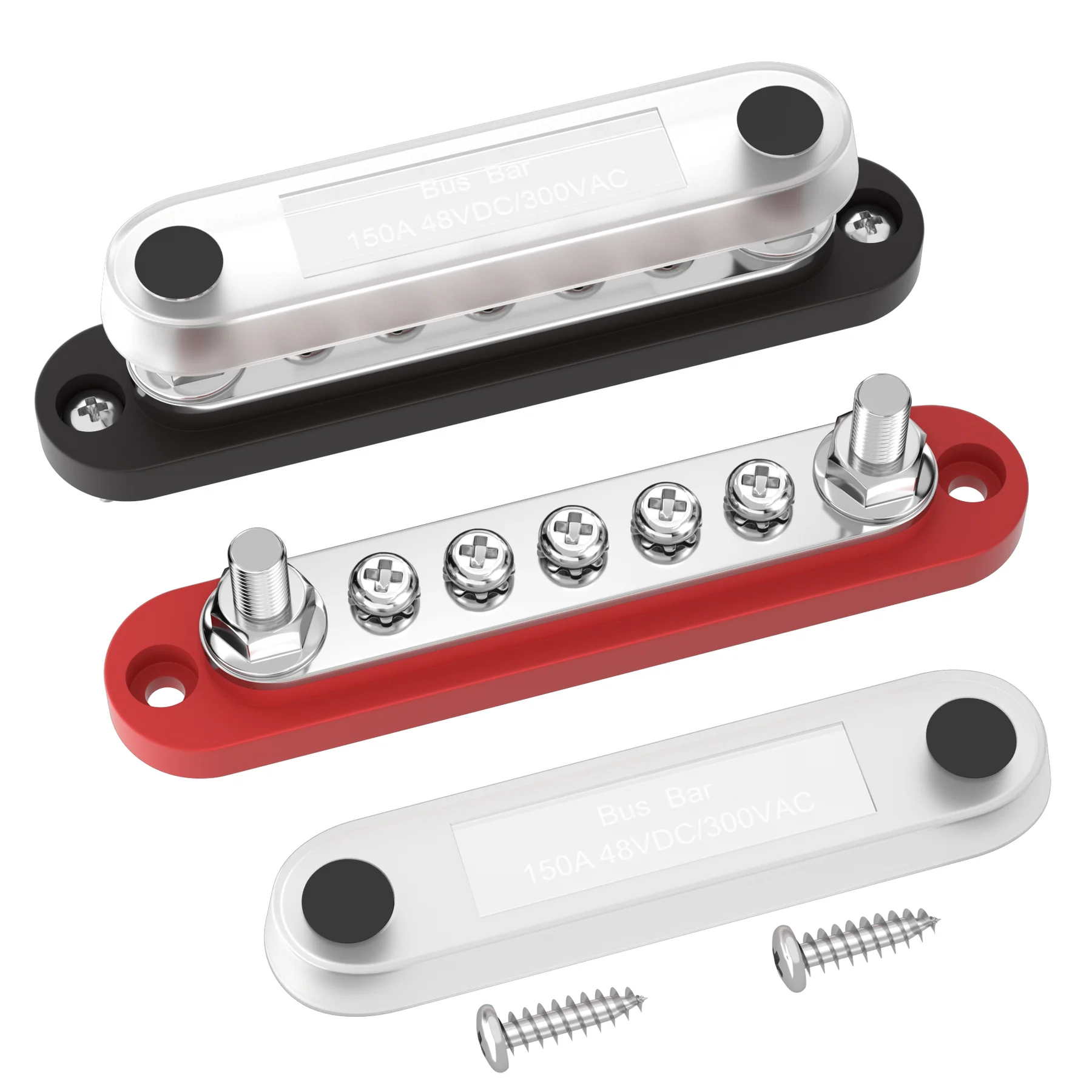

Busbar 2x m6 & 5x m4

About this item

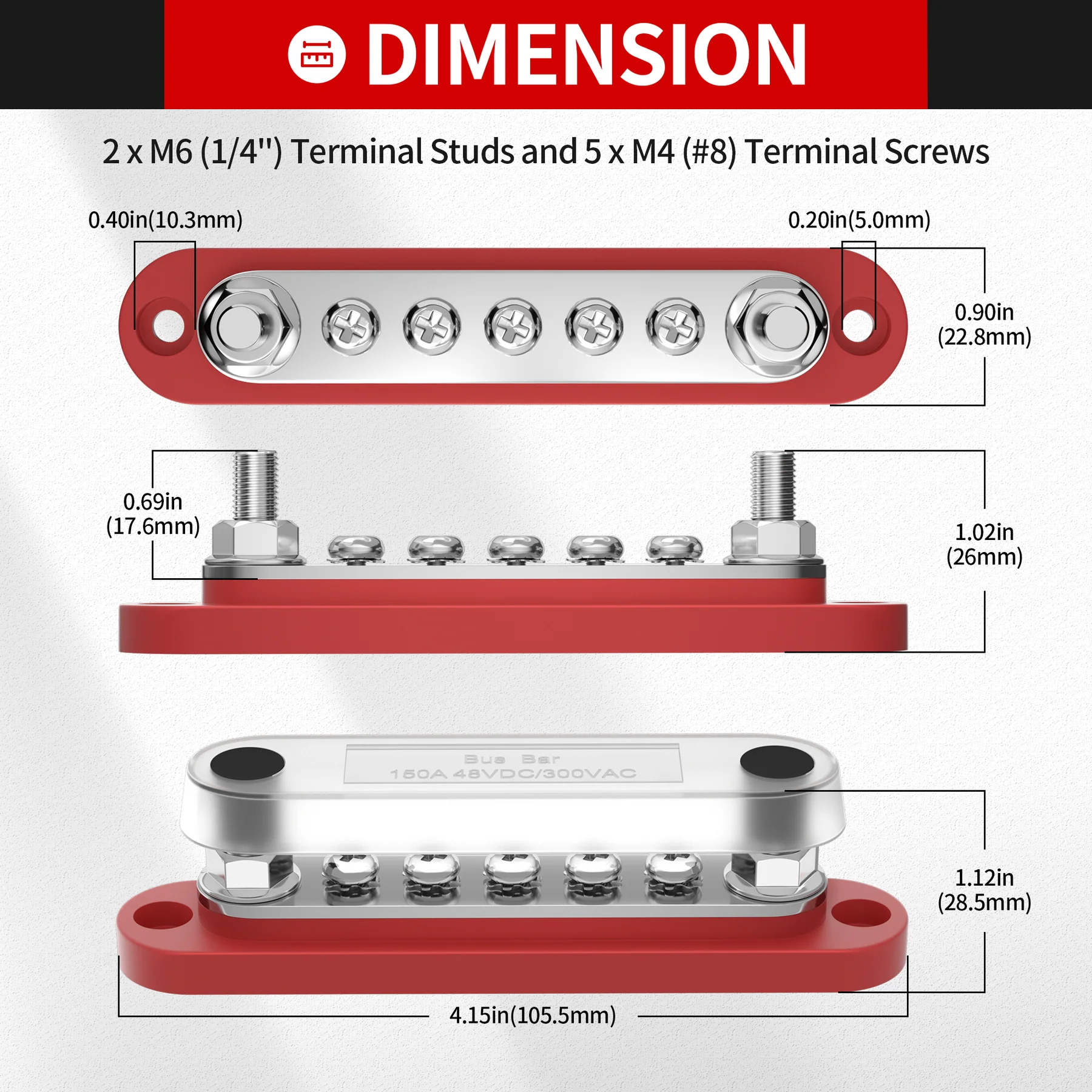

【Terminal Versatility】-  this compact 150A busbar terminal block boasts 2 x M6 (1/4”) stainless steel terminal studs and 5 x M4 (#8) screw terminals for secure connections.

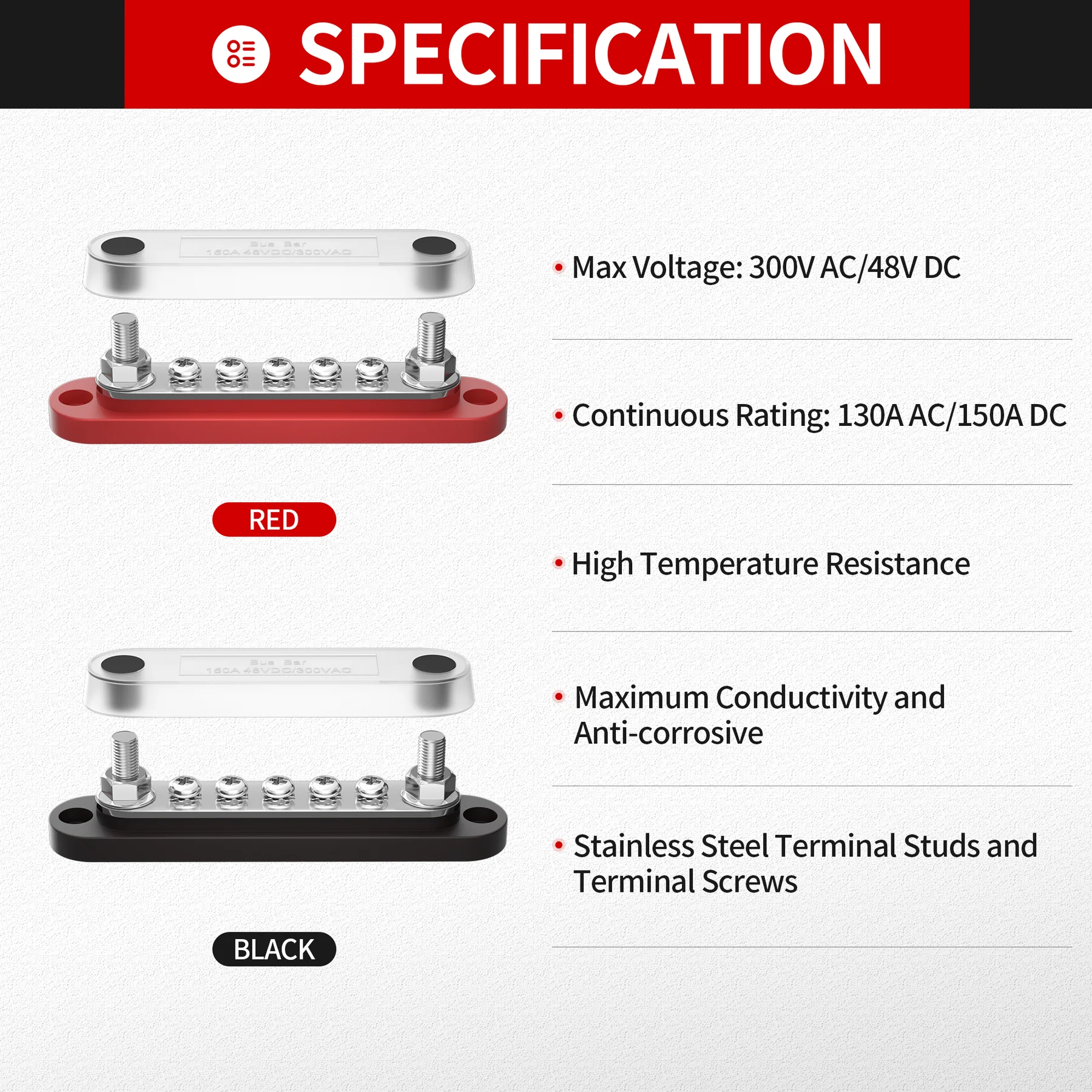

【Robust Rating】- With a robust design, this 12V common busbar supports voltage up to Max 300V AC, 48V DC, and continuous amperage up to Max 120A AC, 150A DC, making it a reliable choice for various power distribution applications.

【Distinctive Round Corner Base】- Stand out with the uniquely designed round corner base of this 12V bus bar terminal block. Its aesthetics, combined with functionality, sets it apart from conventional busbars.

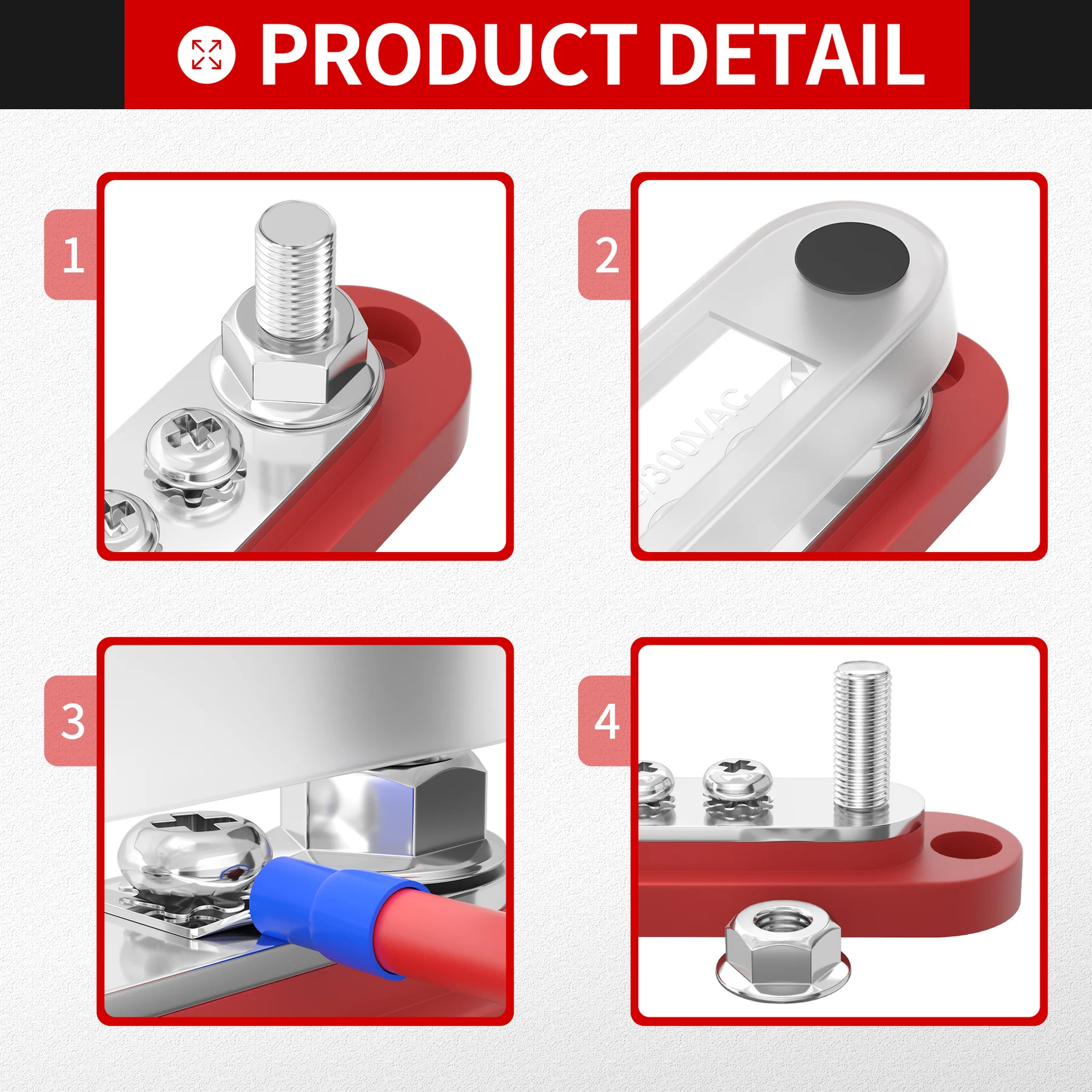

【Enhanced Wiring Flexibility】- The innovative marine bus bar cover design enables versatile 180° wire lug installation, accommodating a wide range of end terminal installation methods for added convenience.

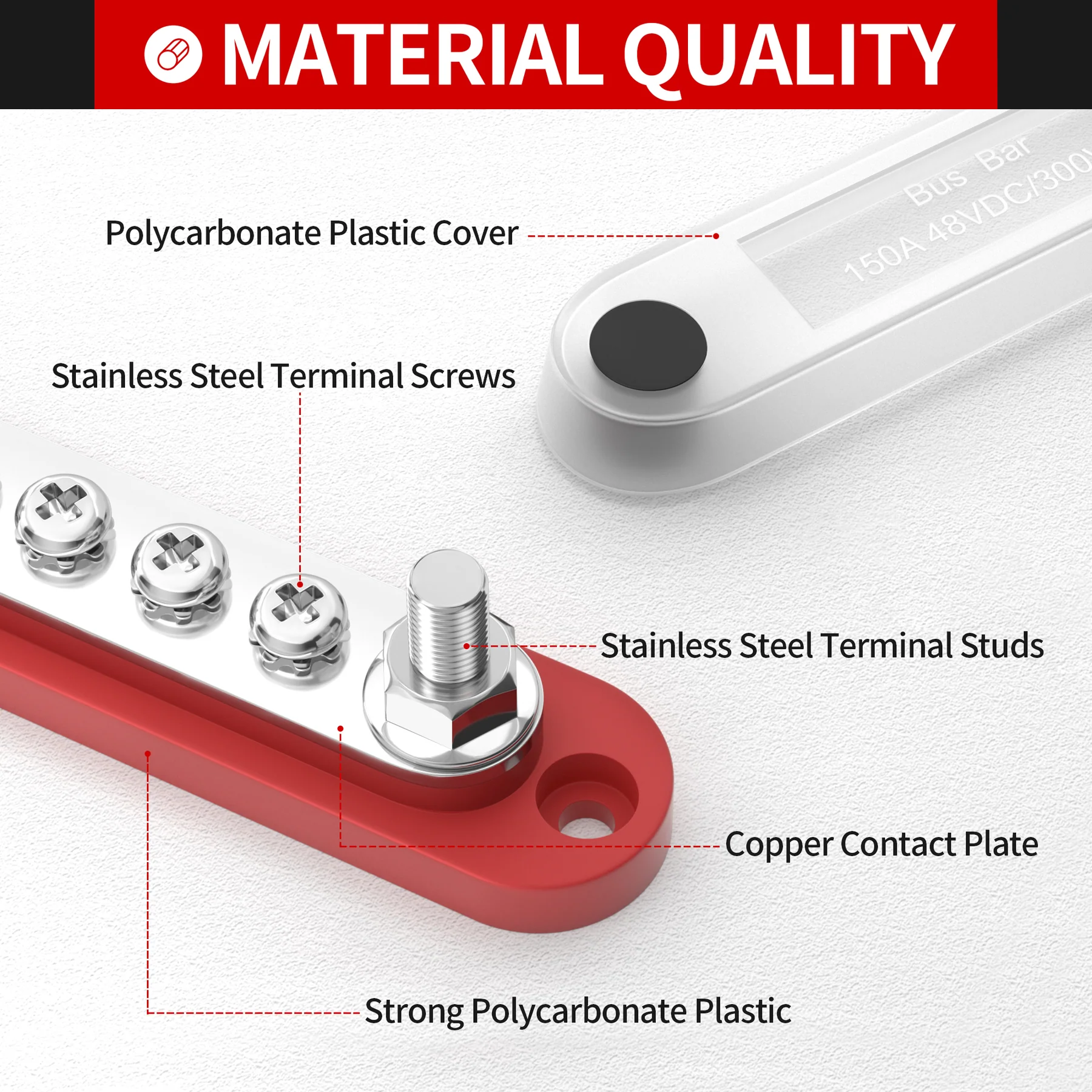

【Wide Applications】- Crafted with copper plates and stainless steel terminals, this insulated bus bar ensures reliable performance even in extreme conditions. Ideal for automotive, RVs, marine vessels, solar energy systems, and more, it is a versatile solution for efficient power distribution.

Spec
