Applications:

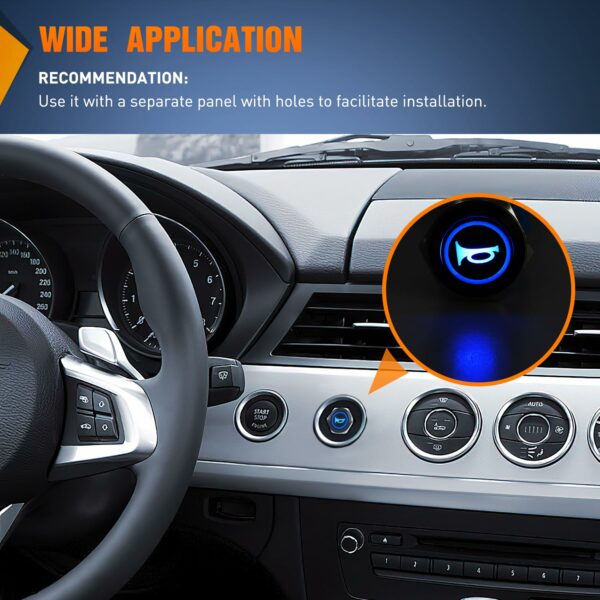

Our switch can be used as a switch for various additional electric equipment, inside and outside the car. AC or DC enviroment. It is widely used to control LEDs and circuits on Car, RV, Marine Boats, Trucks, Households, Coffee Machine, Industrial Equipment and Medical Equipment.
Nilight Momentary Horn Swtich
SPDT 16mm Blue Led Light Button Switches

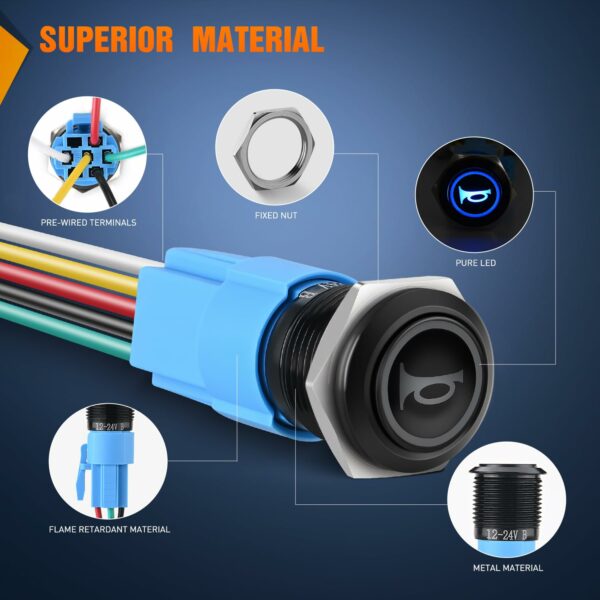

Material: Made of metal material, resistant to high temperature, low temperature, and flame retardant;
MOUNTING HOLE SIZE : 16mm ( 0.63 ” )
PROTECTION DEGREE : IP65
STRUCTURE : INO 1NC
SWITCH RATING : 12VDC / 2A, 24VDC/5A
Product details
Blue indicator light
Switch and LED ring light is separated, LED light can be on all the time or only on when the switch is in ON mode, it depends on how you wire it
Easy Installation
Mounting hole diameter:16mm.
Each switch will come with a set of wires & clasp which makes the connection become more convenient.
High Quality
LED Voltage: 12V-24W; Pins: 5
Good brass makes the switch reflect more sensitive , mechanical life for 500,000 cycles

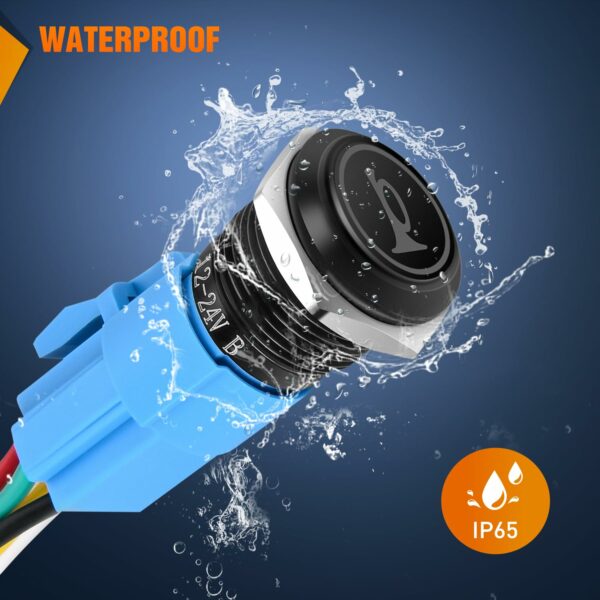

IP65 Waterproof Rating
High quality metal material& waterproof protection can be used in a wet environment, no ware of water anymore, which can be used outdoor and rainy day
Wiring Harness
1. Wiring Harness Length:180mm
2. The clasp on wiring harness make it easy to install and remove

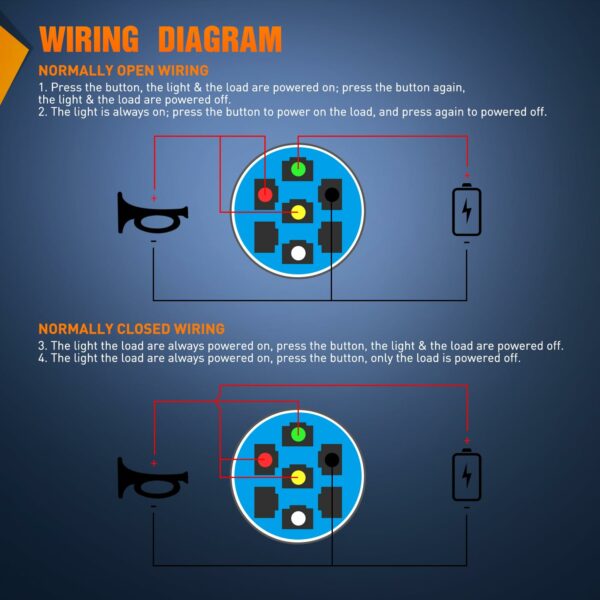

Multiple Connection Way
Normally Open Wiring
1. LED light(Horn Pattern) only illuminate when switch is ON;

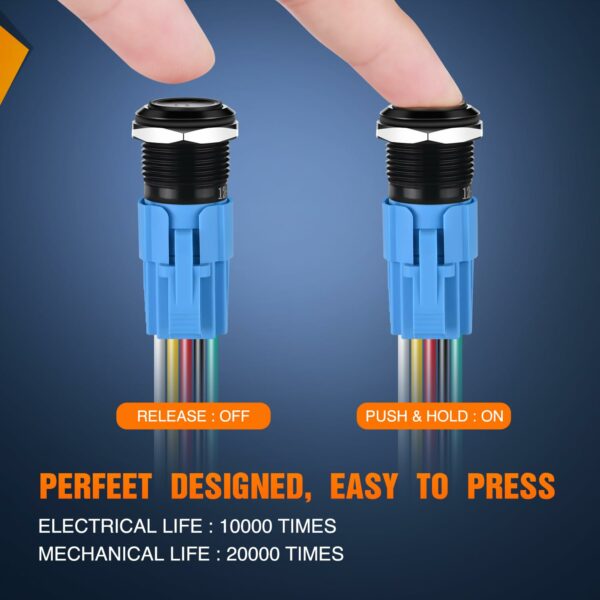

2. Press button, LED light illuminate and load works. Release button, LED light off and the load stop working.
Normally Closed Wiring
1. LED light(Horn Pattern) always illuminate in both “ON”&”OFF” status
2. LED Light illuminate, press button, load works. Release button, load stop working and the LED Light still illuminates. Help you find the switch in the dark.
Momentary Horn Swtich
| Weight | 0,022 kg |
|---|---|
| Dimensions | 15 × 8 × 2 cm |
