Introduction

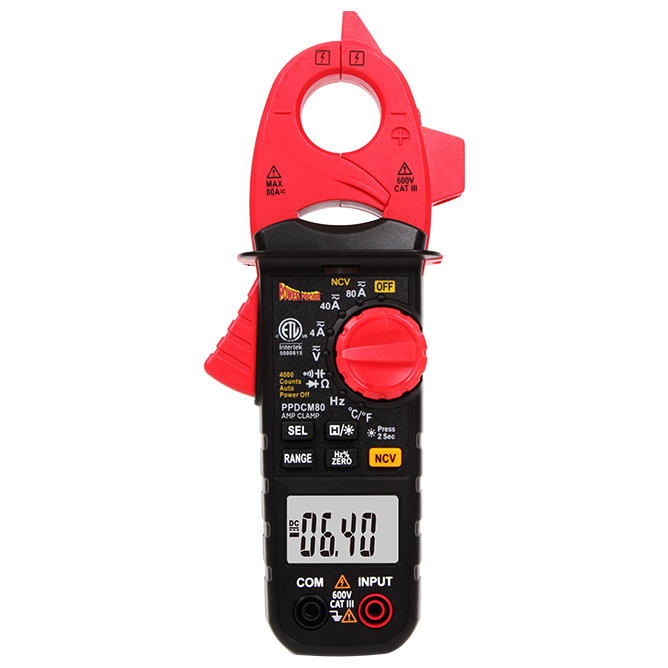

The Power Probe Digital Clamp Meter is an 80amp, auto-ranging clamp meter designed specifically for the automotive technician. This meter is rated CAT III 600V and can measure Volts, Amps, Ohms, Frequency and Temperature, necessary for automotive electrical testing. This meter’s diagnostic applications include (but are not limited to) Parasitic Draw, Crank Current testing and HVAC Temperature testing.
Features
– Voltage: AC 600V DC 600V
– Current: AC 80A DC 80A
– Display 4000 counts
– Jaw Opening 24mm/0.9”
– Auto & Manual Ranging
– Auto Power Off
– Non-Contact Voltage Detector
– Diode Open Voltage 3.2V
– Continuity Buzzer <50Ω
– Data Hold
– Large LCD Display Backlight
– Work Light
– Low Battery Display
Specifications
Auto-range | Yes |
Overload protection | CAT III 600V |
Max. voltage between ter- minals and earth ground | 600V DC or AC |
Operating altitude | ≦2000m(6500ft.) |
Display | 3 3/4 digit LCD display |
Max. reading | 4000 |
Polarity Indication | display automatically shows “-” |
Over-range Indication | display shows “OL” or “-OL” |
Power | 3 x 1.5V AAA Batteries |
Low Battery Indication | “ ” will appear on the display. |
Temperature coefficient | less than 0.1 x accuracy/°C |
Operating temperature | 18°C~28°C (64°F~84°F) |
Storage temperature | -10°C~50°C (14°F~122°F) |
Operating Humidity | <80% |
Operating Environment | Indoor Use |
Pollution degree | 2 |
Dimensions | 195x80x45mm |
Weight | approx. 195g (including batteries) |
