Relay 12V 30A 4p m/festingu, öryggi og sökkli

RELATED VIDEO

ABOUT THIS ITEM

• Upgraded Version – Automotive relays built-in fuse socket  included 30A blade fuse with heavy duty
• 14AWG wires for the main contact. no need for a separate fuse holder, saving space and money. Bosch style 4-Pin SPST (Single Pole Single Throw) Relay.

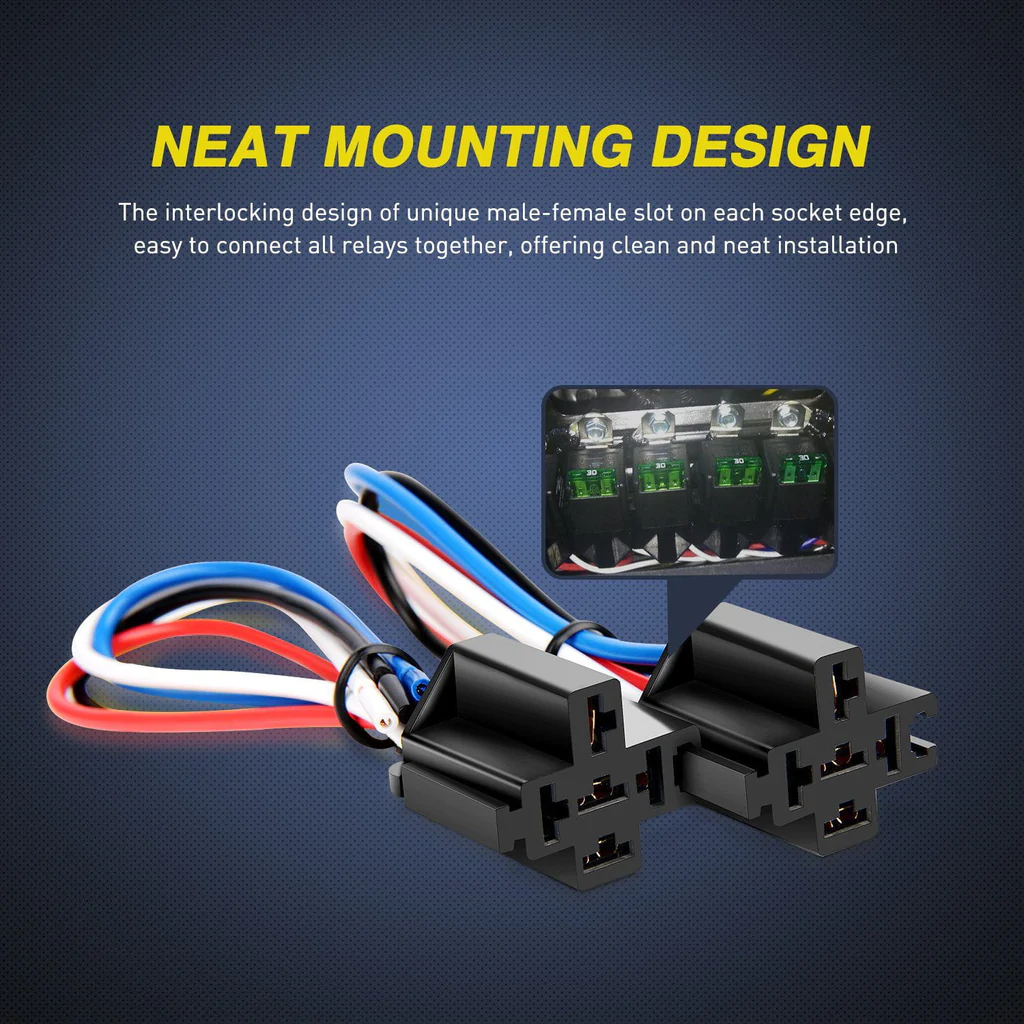

• Mounting Design Feature – The interlocking mounting design of unique male and female slot on each socket edge, connect relays together and manage cables easily, offering clean and neat installation.

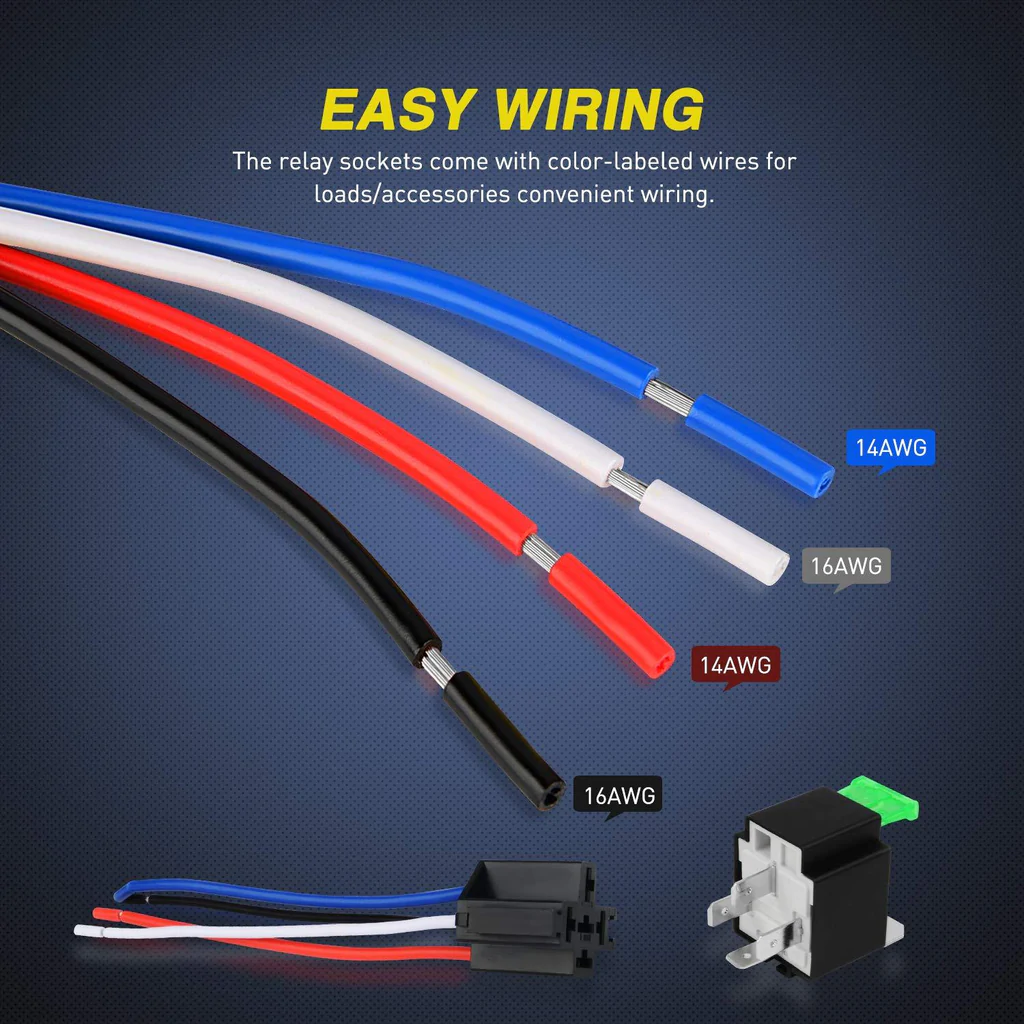

• Easy Wiring – The relay sockets come with color-labeled wires for loads/accessories and convenient wiring. Black – Ground (85), Red – VDC (30), White – Trigger (86), Blue – Output N/O (87)
• Package include: 1 relays, 1 relay harnesses, and 1x30A blade fuses.



SPECIFICATION

1 x Relays

1 x Harness Sockets

1 x 30Amp blade fuse

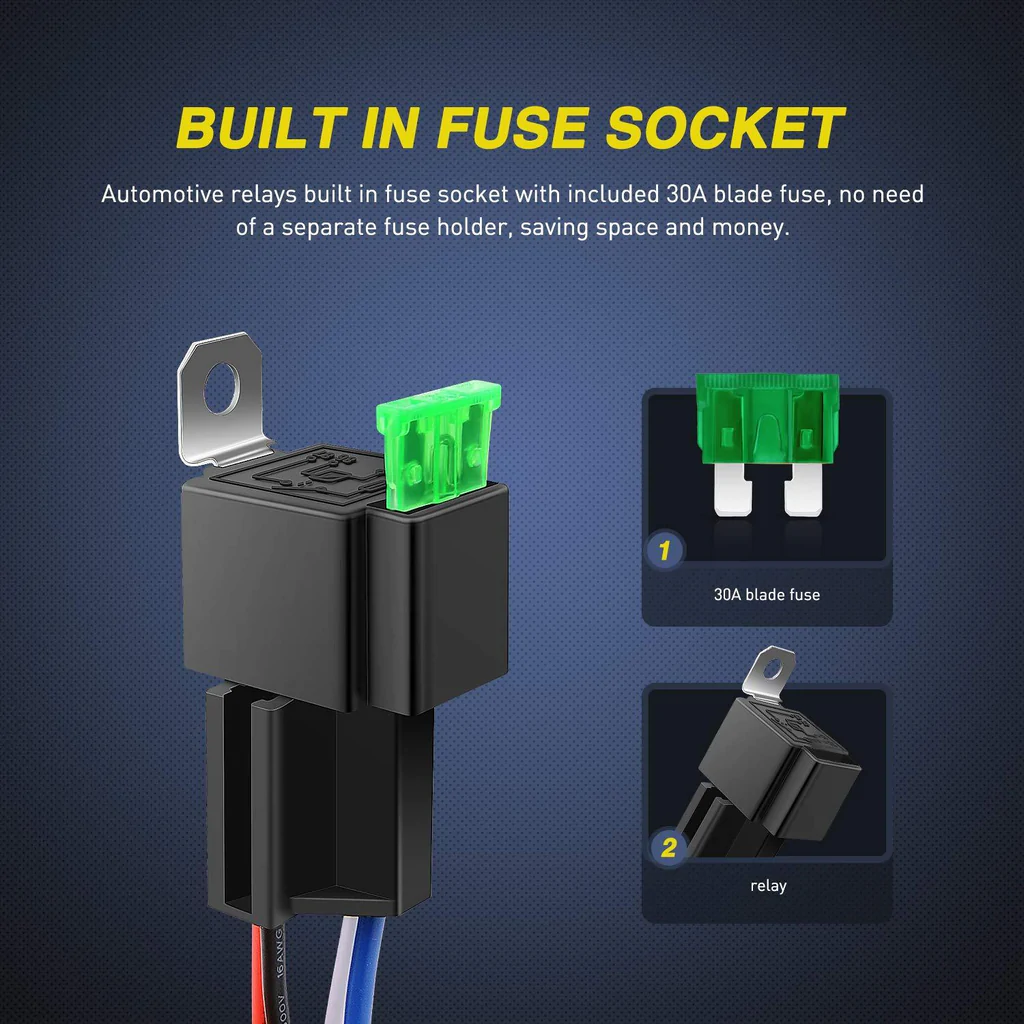

Built-in fuse socket with included 30A blade fuse.

Bosch style 4-Pin SPST (Single Pole Single Throw) Relay.

30A High Switching Capability.

Wire Specifications: Black – Ground (85), Red – VDC (30), White – Trigger (86), Blue – Output N/O (87).

KEY POINT

Product Details

Built-in fuse socket with included 30A blade fuse with heavy-duty 14AWG wires for the main contact

Relay Harness

• 4-Pin single pole single throw relay.
• Blue： 14AWG Pin 87
• Black：16AWG Pin 85
• White：16AWG Pin 86
• Red：14AWG Pin 30

Safe Connection

Unique interlocking design provides simple and easy installation. The relay sockets come with color-labeled wires for accessories wiring, safe and convenient.

Wire Specifications

• Black-ground(85)
• Red-VDC(30A)
• White-trigger(86)
• Blue-output n/o(87)
