ON-OFF Toggle Switch with LED Indicator
Nilight Yellow LED Toggle Switch
- SPST Toggle switch with LED Indicator
- Size: 1.12*0.63*2.21 inches(28.3*16*56 MM)
- Responsible party: Nilight
Key Feature
ON/OFF Toggle Switch

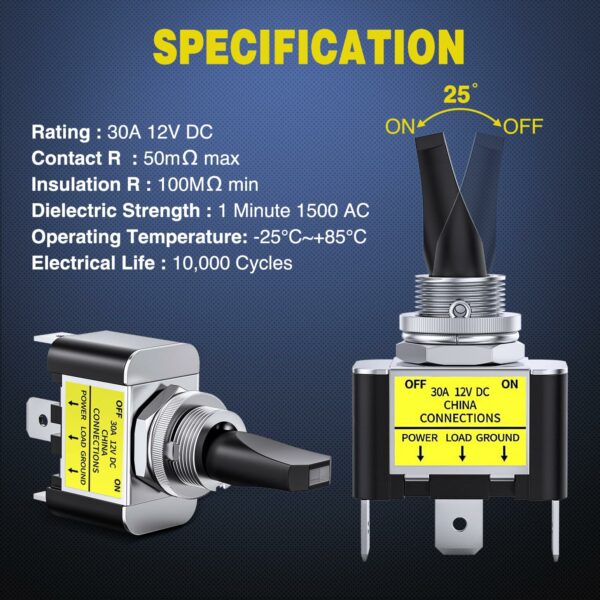

This 12v toggle switch is 3 Pin SPST ON-OFF design,the rating of this automotive toggle switch is 30A 12VDC/15A 24 VDC.
Metal Installation Collar
Securely fasten your toggle switch in panels up to 0.48inch(12mm).
LED Indicator

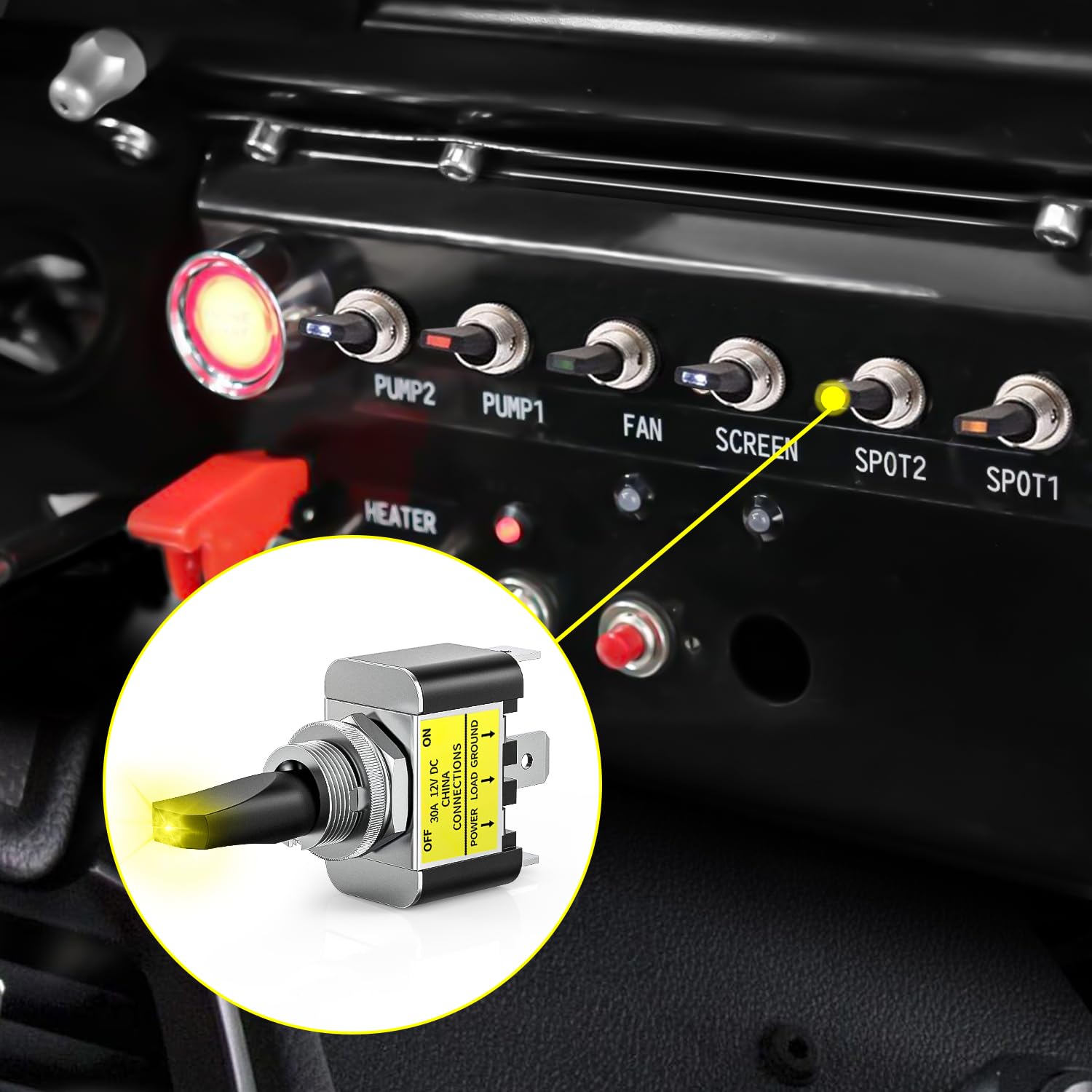

The Yelllow LED indicator will be illuminated when the switch is turned on. When the switch is turned on, the light is turned on; Switch off,light off
SPST 3 Terminal PIN
3 pin terminals i s made of brass copper, the blade type terminals for quick connections of plug and play.
Widely Application
| Weight | 0,022 kg |
|---|---|
| Dimensions | 8 × 10 × 2 cm |
