Rofi m/ljósi rauður

1.259 kr.

Availability: In stock

SKU: 90337R Category: Tag:

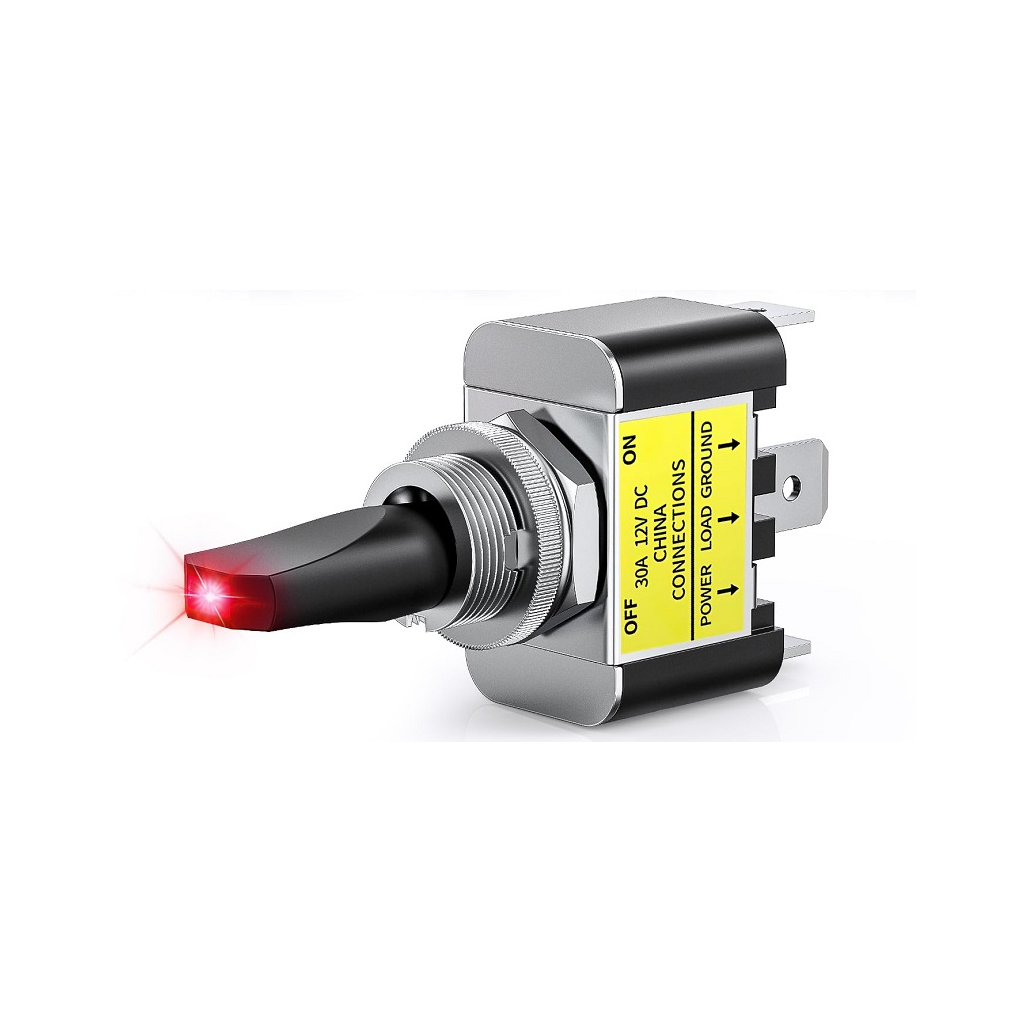

Nilight LED Toggle Switch Red LED Metal Switch SPST 3 Pin Switch for Automotive Cars Trucks

ON-OFF Toggle Switch with LED Indicator

Nilight Red LED Toggle Switch

  • SPST Toggle switch with LED Indicator

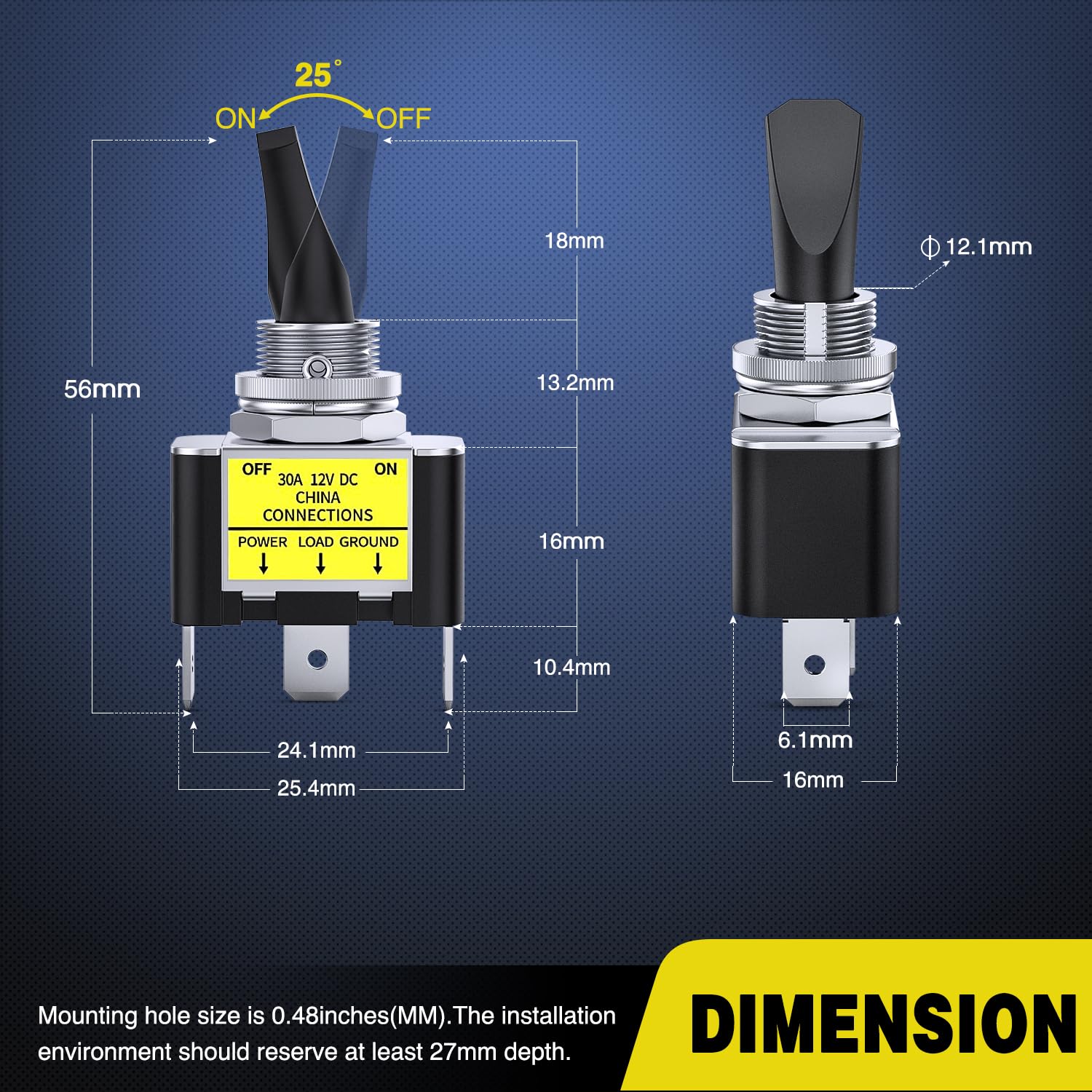

  • Size: 1.12*0.63*2.21 inches(28.3*16*56 MM)
  • Responsible party: Nilight

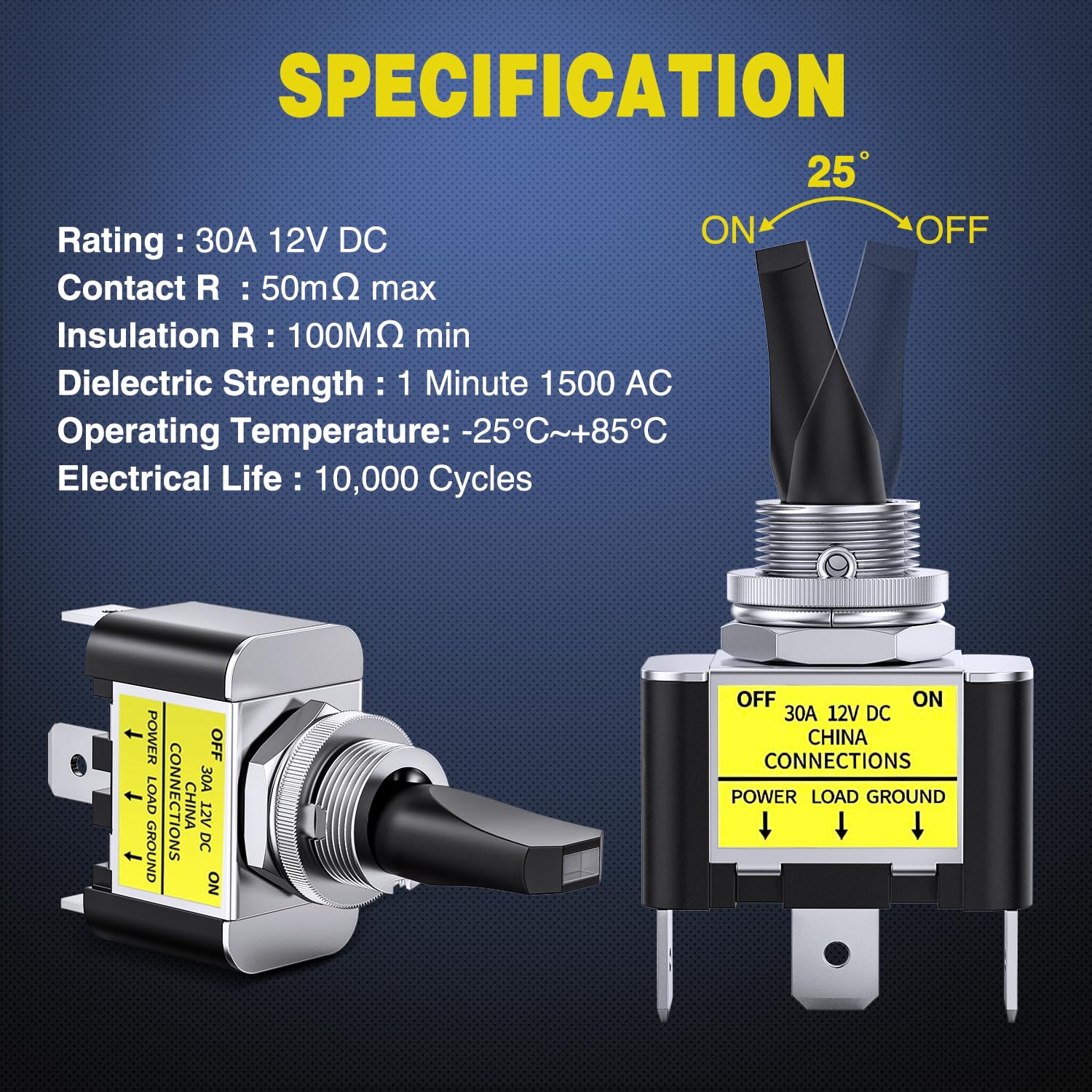

Speciflcation:

Rating: 30A 12VDC/ 15A 24VDC
Contact Resistance: ≤50mΩ
Insulated Resistance: ≥100MΩ
Operating Temperature: -25℃~+85℃
Electrical Life: ≥10,000 Cycles
Panel Cut-Out Size: 12mm
Panel Thickness: 10mm Max
Waterpoof Degree: IP40
LED Rating: 20mA
LED Endurance: ≥20,000 Hours

Key Feature

Nilight LED Toggle Switch Red LED Metal Switch SPST 3 Pin Switch for Automotive Cars Trucks

ON/OFF Toggle Switch

This 12v toggle switch is 3 Pin SPST ON-OFF design,the rating of this automotive toggle switch is 30A 12VDC/15A 24 VDC.

Nilight LED Toggle Switch Red LED Metal Switch SPST 3 Pin Switch for Automotive Cars Trucks

Metal Installation Collar

Securely fasten your toggle switch in panels up to 0.48inch(12mm).

Nilight LED Toggle Switch Red LED Metal Switch SPST 3 Pin Switch for Automotive Cars Trucks

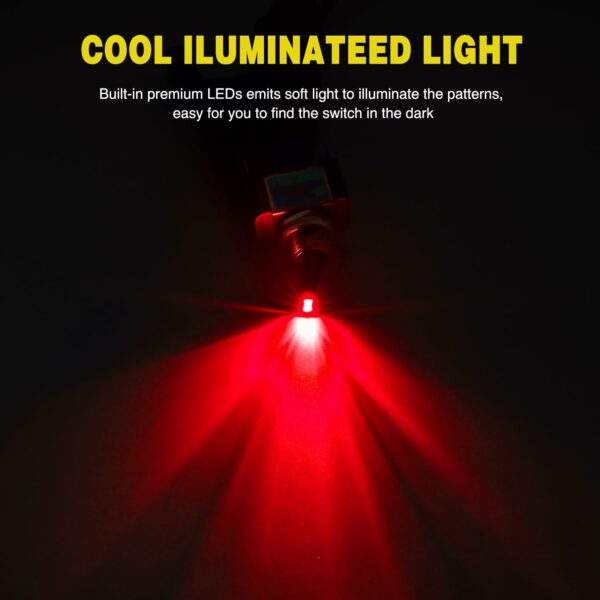

LED Indicator

The Red LED indicator will be illuminated when the switch is turned on. When the switch is turned on, the light is turned on; Switch off, light off

Nilight LED Toggle Switch Red LED Metal Switch SPST 3 Pin Switch for Automotive Cars Trucks

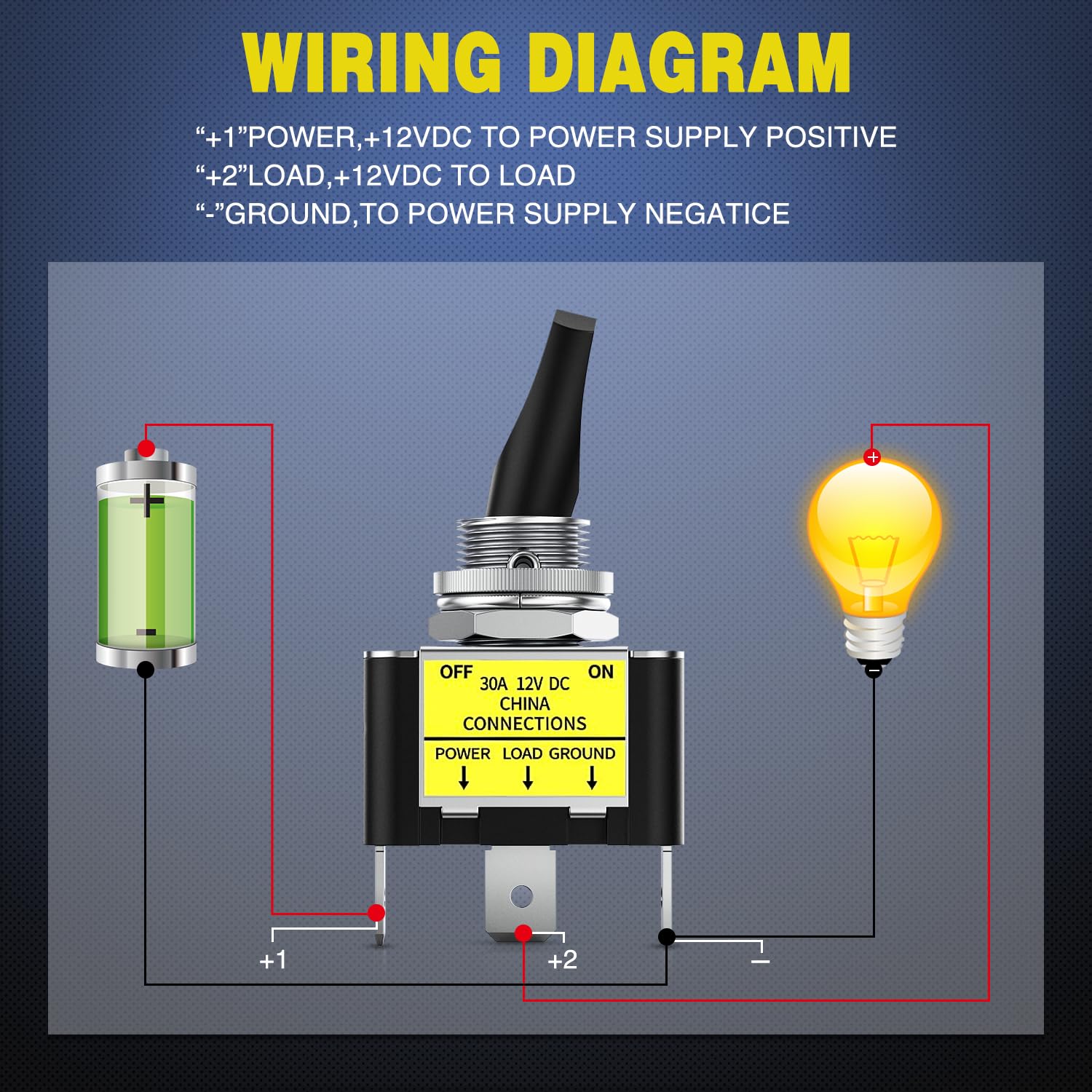

SPST 3 Terminal PIN

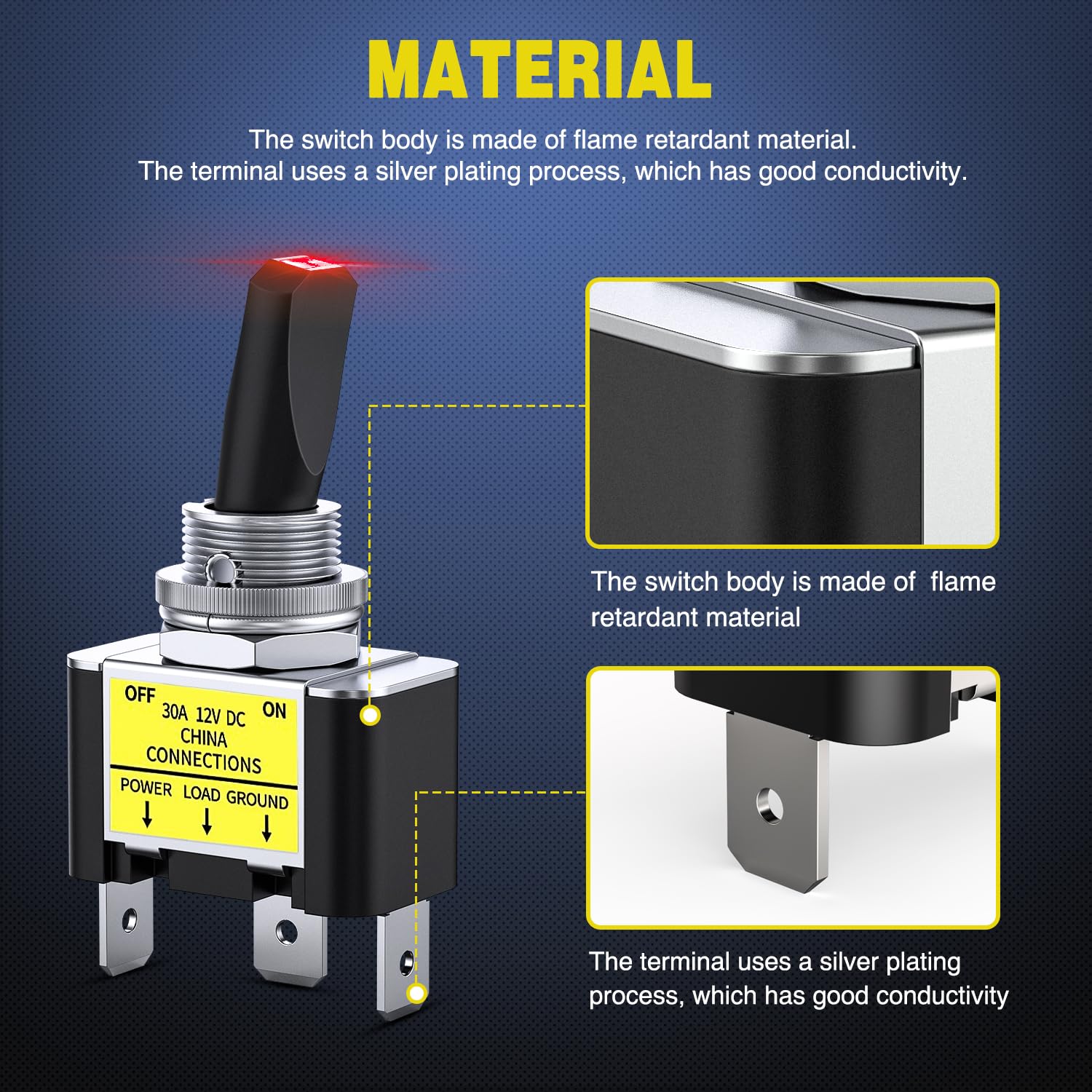

3 pin terminals i s made of brass copper, the blade type terminals for quick connections of plug and play.

Widely Application

Nilight LED Toggle Switch Red LED Metal Switch SPST 3 Pin Switch for Automotive Cars Trucks
Nilight LED Toggle Switch Red LED Metal Switch SPST 3 Pin Switch for Automotive Cars Trucks
Nilight LED Toggle Switch Red LED Metal Switch SPST 3 Pin Switch for Automotive Cars Trucks
Nilight LED Toggle Switch Red LED Metal Switch SPST 3 Pin Switch for Automotive Cars Trucks
Weight 0,022 kg
Dimensions 8 × 10 × 2 cm
