About this item
- Push Button Switch: The ON-OFF rocker switch with SPST design (single pole single Throw) is manufactured to fit in the OEM switch blank for your cars. It comes with a small pigtail that plugs into the back of the switch for better installation.
- Cool LED illumination: built-in two premium LEDs Emits soft light to illuminate the patterns on the switch, easy for you to find the switch in the dark.
- Wide Application: The switch is perfect for controlling Led Light Bars, Led Work Lights, Fog Lamps, Headlights, Taillights, and Auxiliary Lamps, etc. The switch is rated for 3 amps, you would need a relay if your lights are rated higher.
- Compatibility: Surface size 1.54″ x 0.83″, compatible with Toyota FJ Cruiser 2007-2015; Toyota Fortuner 2005-2014; Toyota Hilux 2005-2014; Toyota Tacoma 2005-2011; Toyota Tacoma 2012-2015 (Left Side only); Toyota Highlander 2001-2007; Toyota Tundra 2005-2006 (Center Console if equipped); Toyota 4Runner 2003-2009; Toyota Prado 120 Series 2003-2009; Toyota Land Cruiser 100 Series 1998-2007; Toyota Land Cruiser 75, 76, 78 & 79 series. Please measure your present switches and compare the sizes.
- Package Includes: LED Light Bar Switch with connector wire kit and a wiring diagram.
Fitment
# Toyota FJ Cruiser 2007-2015
# Toyota Fortuner 2005-2014
# Toyota Hilux 2005-2014
# Toyota Tacoma 2005-2011/2nd gen Tacoma 2005-2011
# Toyota Tacoma 2012-2015 (Left Side ONLY)
# Toyota Highlander 2001-2007
# Toyota Tundra 2005-2006 (Center Console if equipped)
# Toyota 4Runner 2003-2009
# Toyota Prado 120 Series 2003-2009
#Toyota Land Cruiser 100 Series 1998-2007
#Toyota Land Cruiser 75, 76, 78 & 79 series
#It also works for other vehicles but you have to cut it out wherever you wanna place it on your car.
Nilight Led Light Bar Push Button Switch
12V ON Off Switch with Connector Wire Kit
SPST design (Single Pole Single Throw); Built-in 2 LEDs, laser-etched pattern.

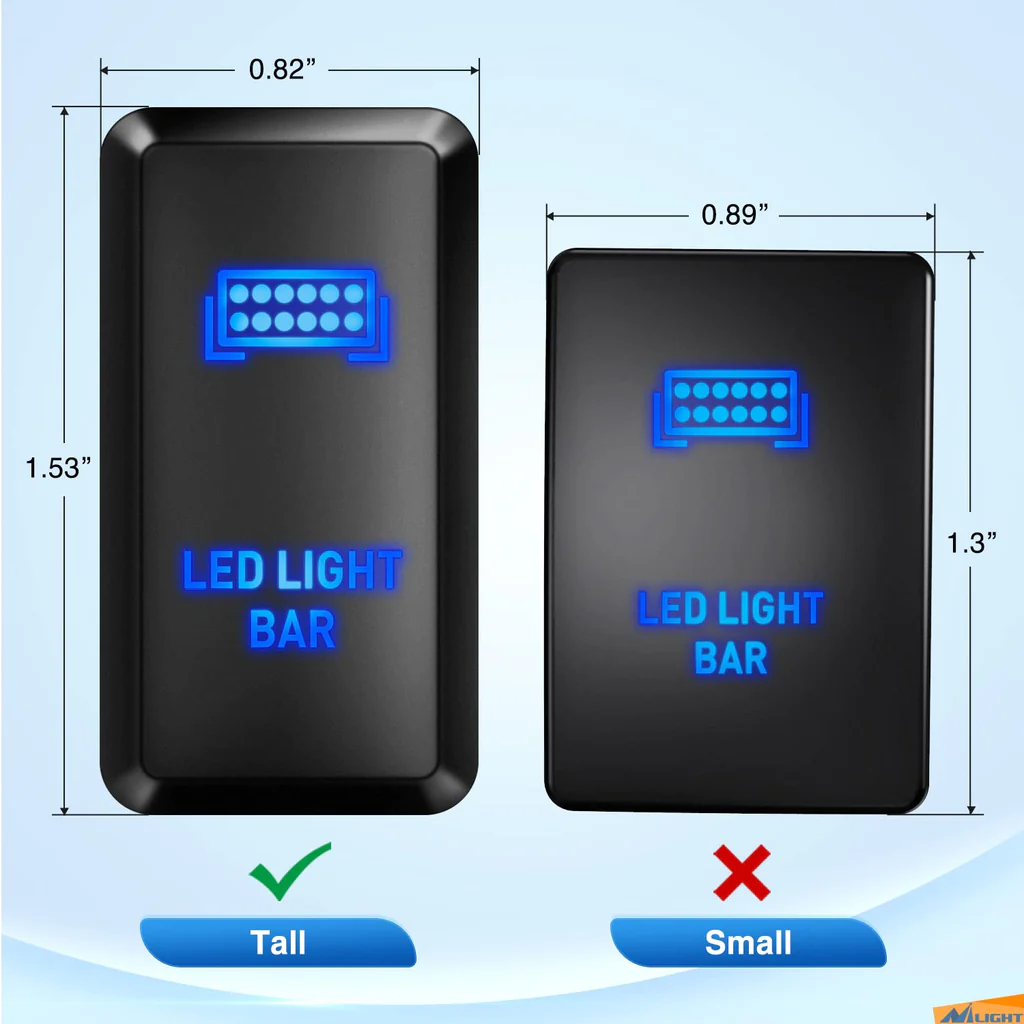

Surface size 1.54″ x 0.83″(40 x 22mm)
Mainly used for controlling LED light bars, LED work lights, fog lamps, driving lights, taillights, off-road lights, light pods, etc.
- LED Color: Blue
- Package Includes: 1 x LED Light Bar Switch with wire connector kit, 1 x wiring diagram
Product Details

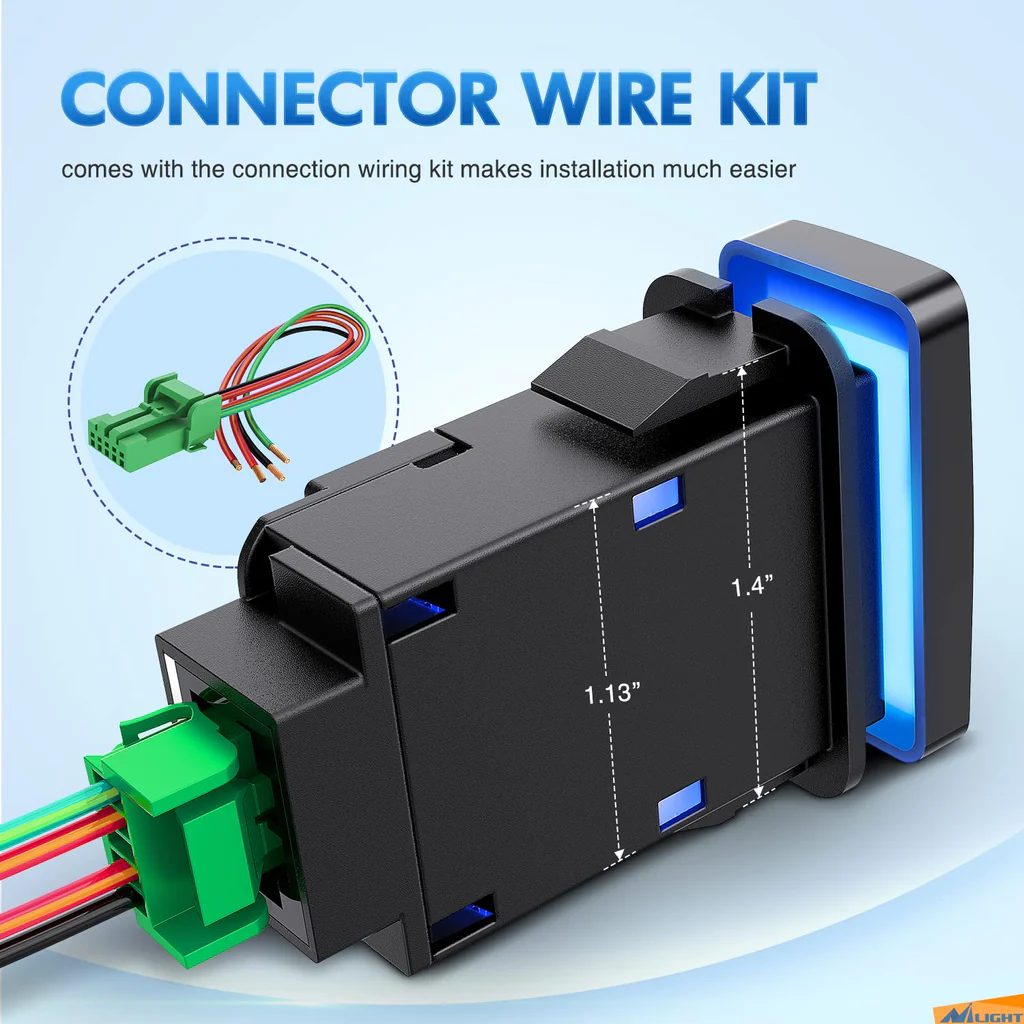

Easy Installation
This switch is simple to install, product comes with a wiring connector which makes it easy to connect by plugging it into the switch, not needing the slightest effort.
Solid Construction
The switch is made out of heavy-duty ABS plastic. It fits most model Toyota’s vehicles, such as Tacoma, FJ Cruiser, Fortune, and some others. It has short circuit protection to protect your vehicles, and ensure years of service. Safe and long-lasting.

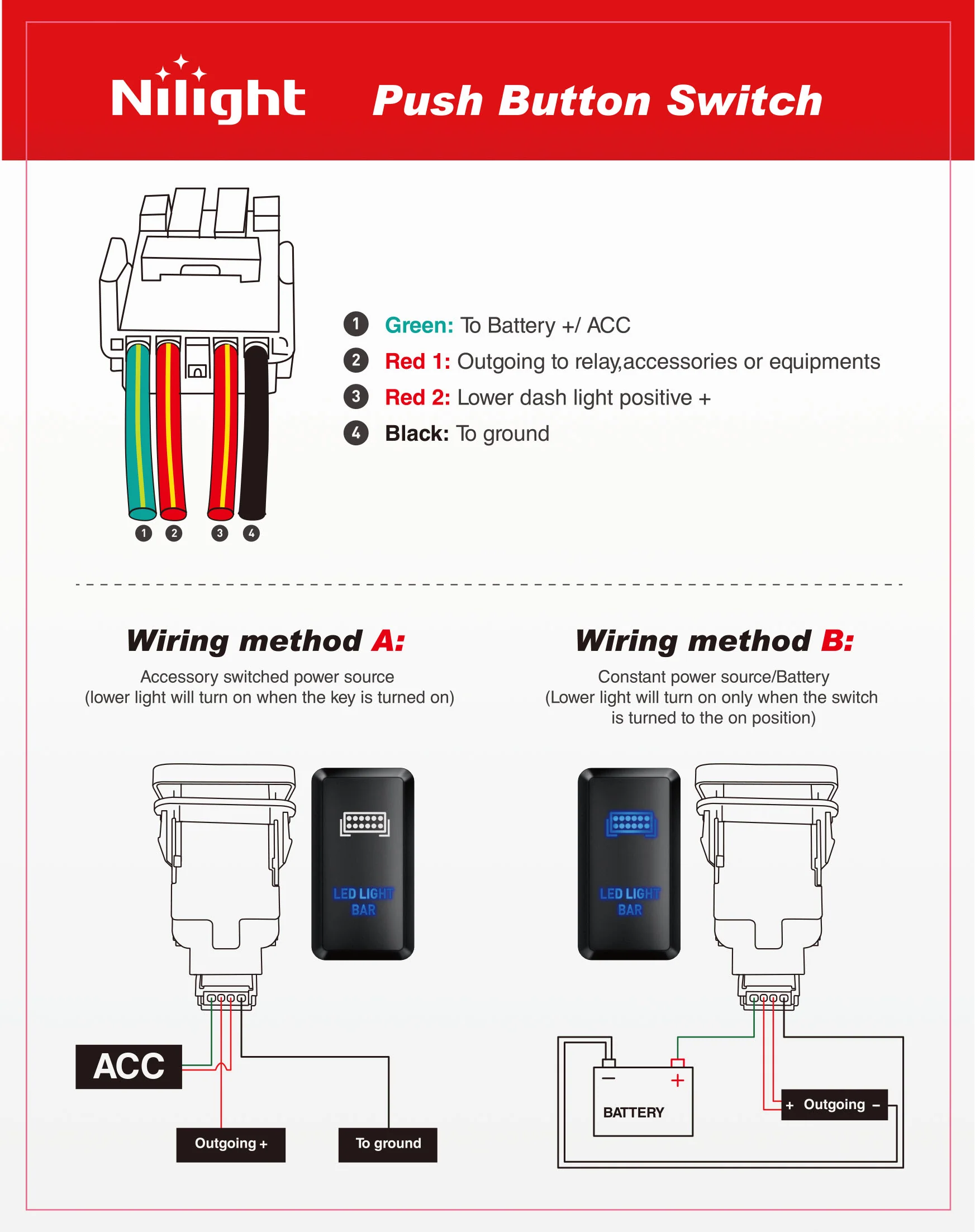

Easy Wiring

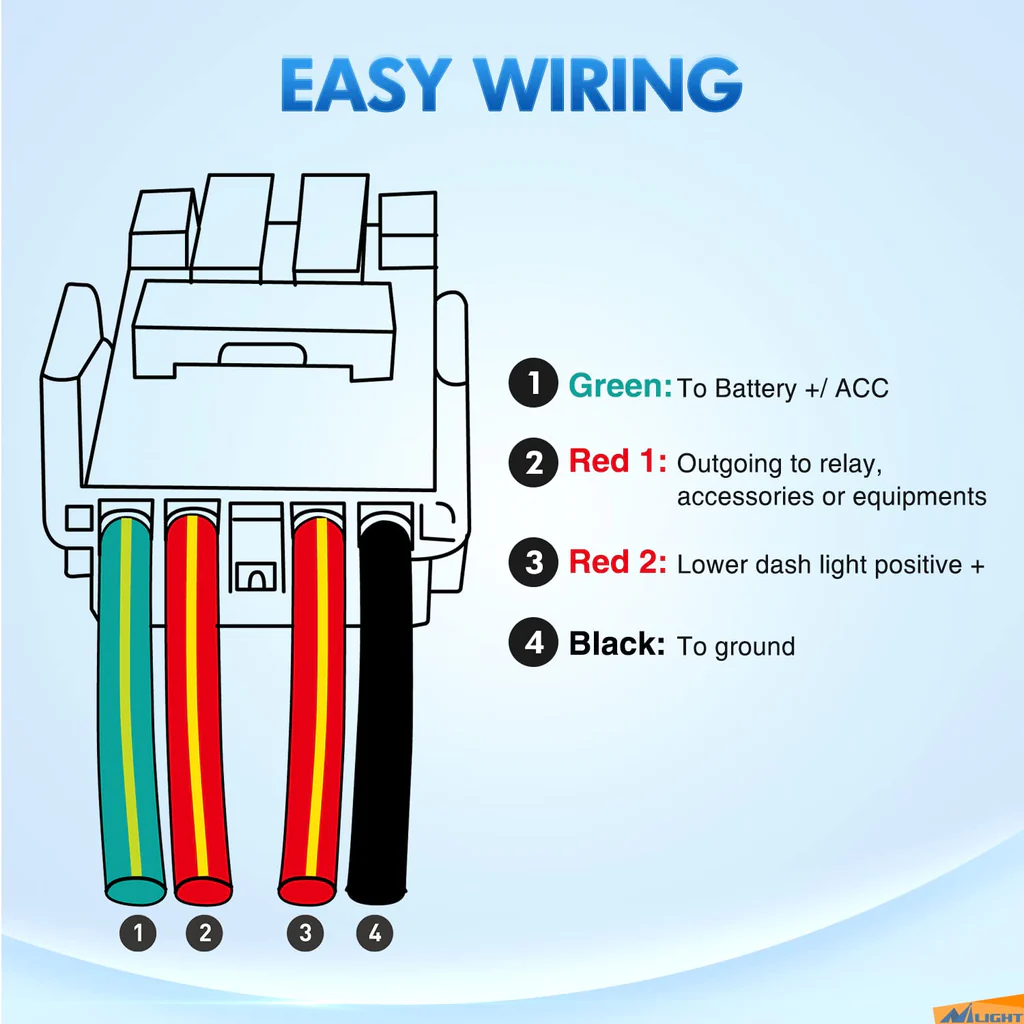

The color-coded wire is easy for you to identify the function of each wire:
- Green Wire: Connect to the battery + / ACC
- Red wire (close to green wire): Connect to the relay
- Black Wire: Connect to the ground
- Red wire (close to black wire): Lower dash light +

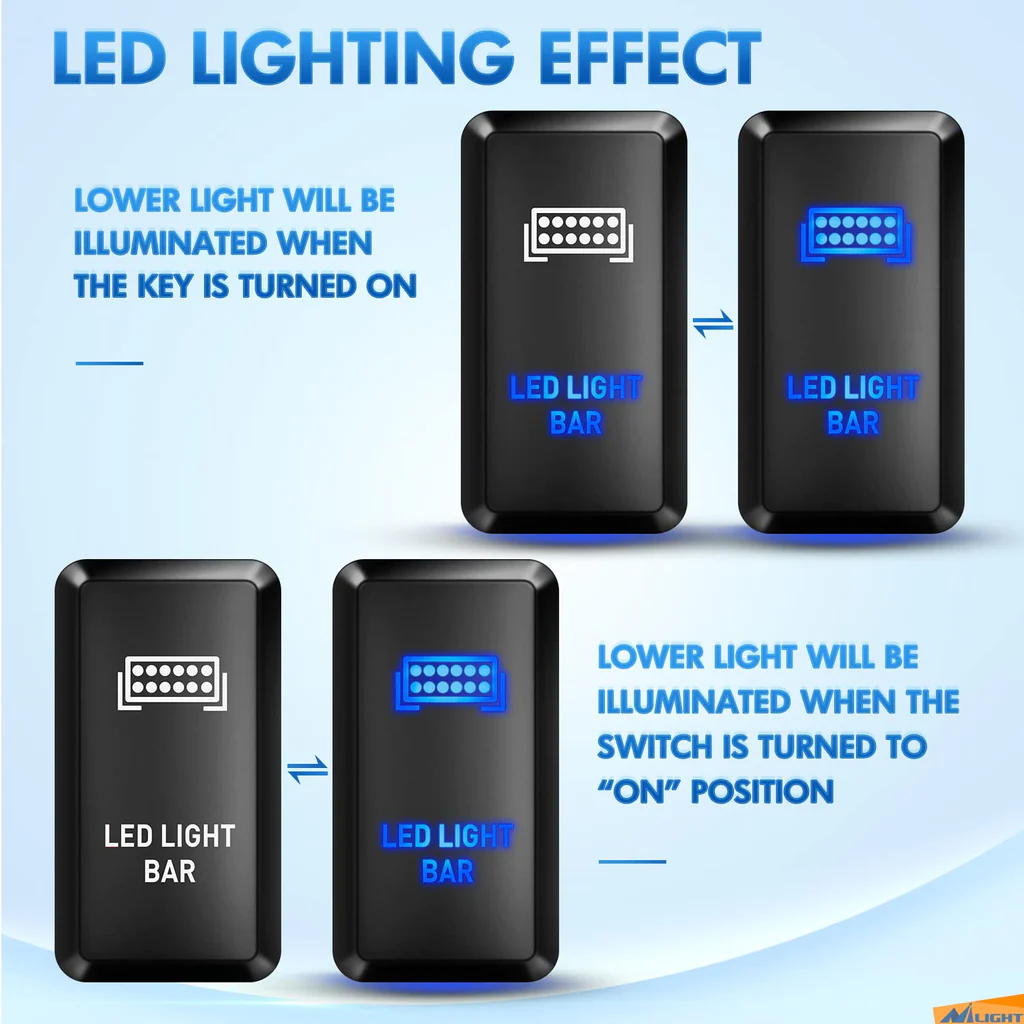

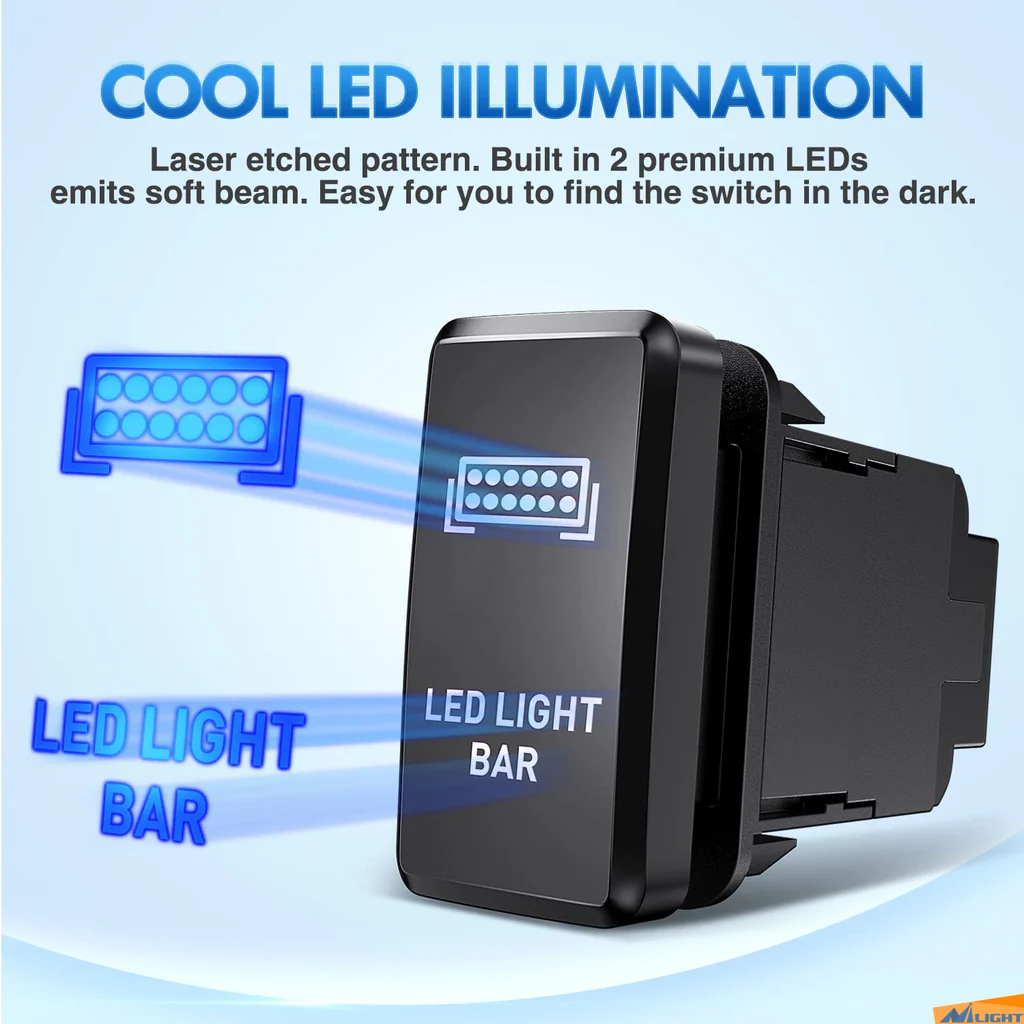

Cool LED illumination
Built-in two premium LEDs Emit soft light to illuminate the patterns on the switch, easy for you to find the switch in the dark.
NOTE:
1. The switch is rated at 3 Amps. A relay is necessary if your lights are rated higher.
2. Please measure the hole you want to place before placing an order, in order to make sure it fits your vehicle.
User Manual
| Weight | 0,043 kg |
|---|---|
| Dimensions | 8 × 6,5 × 4 cm |
