Ryðfrír rofi 16mm

1.090 kr.

  • SPDT: ON-OFF
  • Type: 2 pole design (On/Off), 3rd poles with LED
  • Input: 12V, 20A
  • Material: Metal+Flame retardant material
  • Wiring harness: 8inch



Availability: In stock

SKU: 90253B-A Category: Tags: , ,

ABOUT THIS ITEM

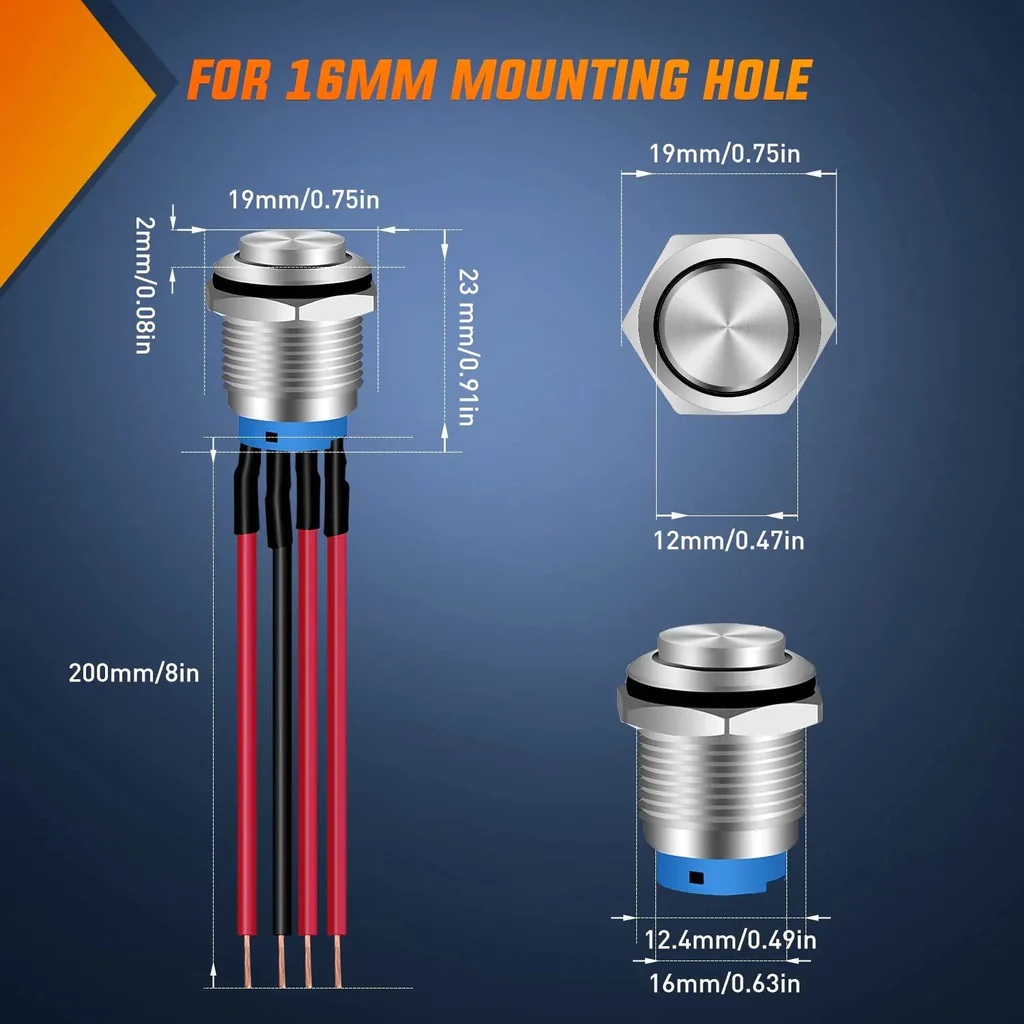

  • LED Illuminated Switch: The LED indicator on the push button switch will illuminate when you press the switch to “ON” status, and LED remain off when the switch is in “OFF” status. Mounting hole size for the switch is 16mm 5/8″, durable for a longer lifetime.
  • Easy Installation: Each switch is pre-wired with the soldered wiring harness, convenient for connect the accessories or equipments. Round latching switch with screw clamp type terminals to make fitting very easy,multi-type wire connection. Lifetime can up to 500,000 cycles, durable and antirust.
  • Wide Application: Our switch can be used as a switch for various additional electric equipment, inside and outside the car. AC or DC enviroment. It is widely used to control LEDs and circuits on Car, RV, Marine Boats, Trucks, Households, Coffee Machine, Industrial Equipment and Medical Equipment. Suitable for almost any motorized vehicle of motor starting, power starting devices, and can also be an access control button.
  • IP67 Waterproof Rating: This self-locking push button switch can be used in a wet or dusty environment, no worry about rain or water anymore, which can be used outdoor and rainy day.
  • Package Includes: 1 x 16mm 12V SPDT latching push button switch with 8inch wiring harness, a wiring diagram. Great for motorized vehicles of motor starting, power starting devices and can also be an access control button.

16mm 12V Waterproof ON Off Latching Push Button Switch

24V Pre-Wired SPDT Self-Locking 4 Pin Marine Metal Switch

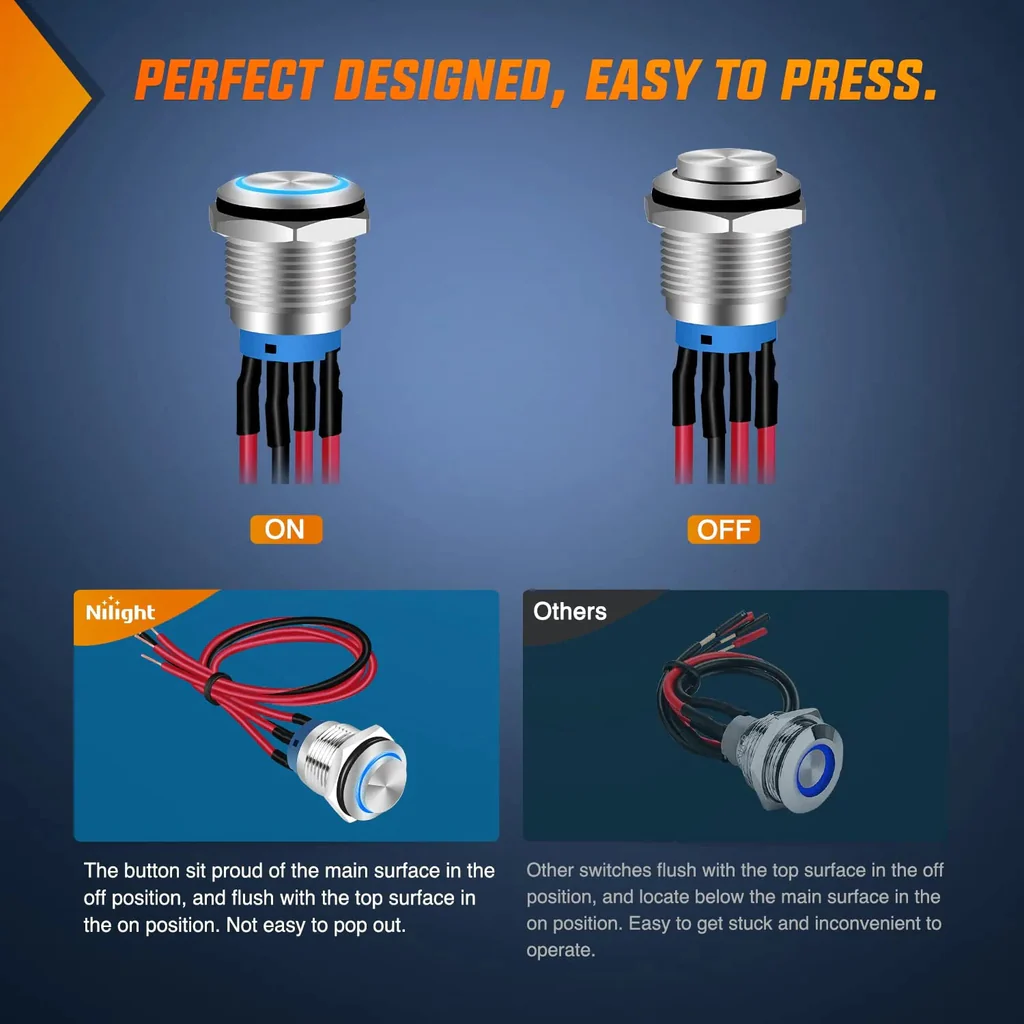

  • Easy to Use: Push it-ON; Push it again-OFF.
  • Easy to connect: Push button switch with connector wire, convenient and time-saving.

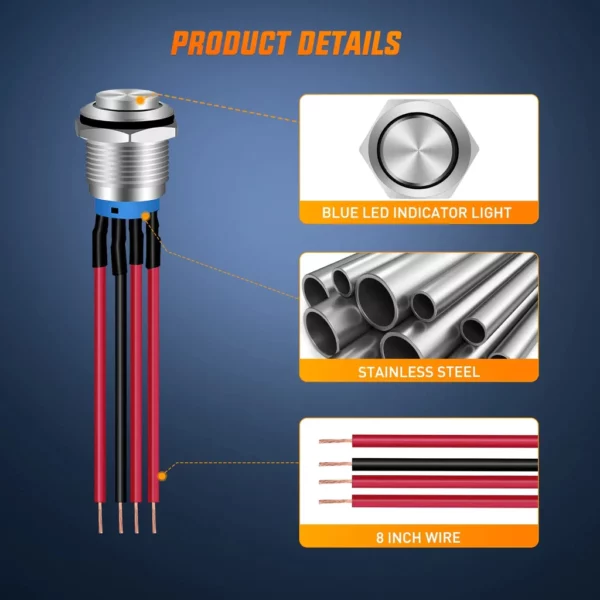

  • Blue Led Indicator Switch: You can find the switch accurately in the dark because there is a blue led ring light on the button swatch.
  • 304 stainless steel shell : Antirust and waterproof which is also provide a longer working time than normal plastic switch, good brass makes the switch reflect more sensitive.
  • SPDT: ON-OFF
  • Type: 2 pole design (On/Off), 3rd poles with LED
  • Input: 12V, 20A

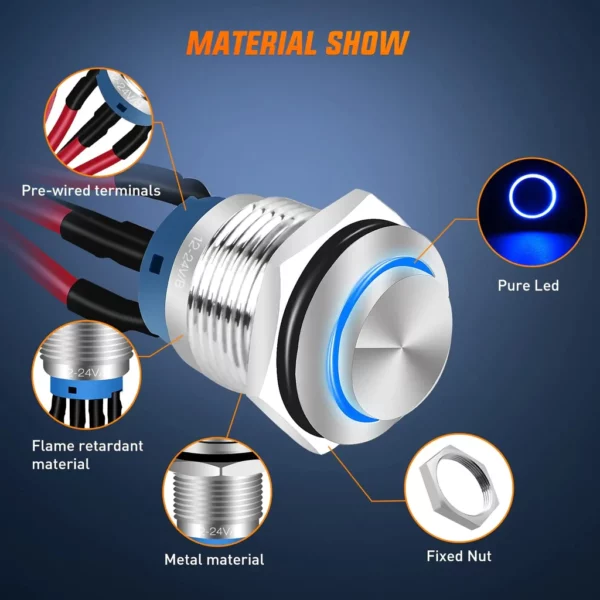

  • Material: Metal+Flame retardant material
  • Wiring harness: 8inch



FEATURES

Pre-Wired

With pre-soldered cable, convenient for wire connection, no need connector socket. Lifetime can up to 500,000 cycles, durable and antirust.

LED Indicator

The blue LED indicator will be illuminated when the switch is turned on. e.g. When the switch is turned on, the light is also turned on;Switch off, light off

Multiple Connection Ways

The button switch and LED ring light is isolated, LED light can be on all the time or only on when the switch is in ON mode, non-electrical person can install it easy.

IP65 Waterproof Rating

This self-locking push button switch can be used in a wet environment, no worry about rain or water anymore, which can be used outdoor and rainy day.

APPLICATIONS

Instruments Apparatus

Our push button switch can use as a replacement of instruments apparatus

The LED switch can be widely applied to Automotive, Race Cars, RVs, Heavy Duty Trucks, Off Road Vehicles, ATVs etc.

As it is full metal appearance and with a rubber ring, the switch achieves IP65 waterproof degree. It can used in wet environment, such as boat control panel, kitchen, outdoors etc.



Weight 0,019 kg
