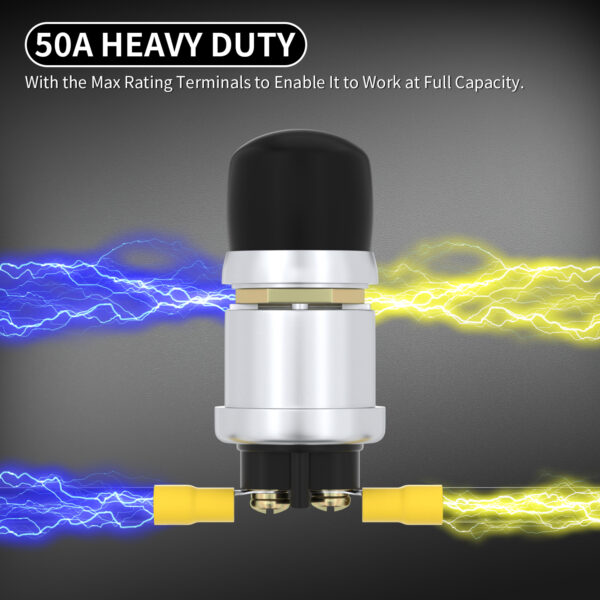

ASW-B05 Car Push Button Starter Switch
- Enhanced Protection

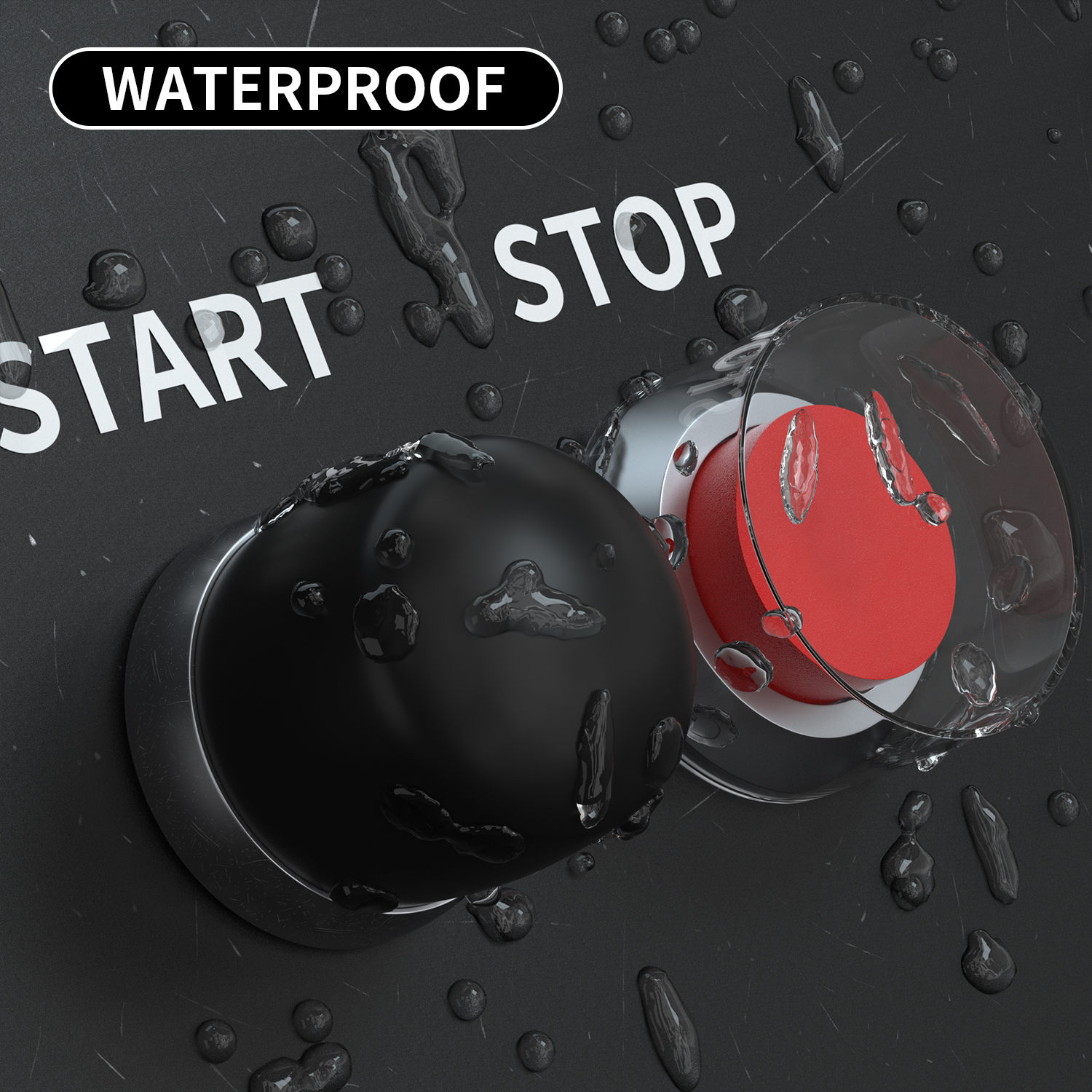

The high-quality horn push button starter switch features a weatherproof rubber cover, effectively preventing dirt, dust, and moisture from entering.
- Compact Design
The car horn button switch is designed with a compact size, making it easy to mount in 5/8 inch drill holes and 0.63 inch threaded parts.
- Reliable Performance
The push start button is compatible with most 12V/24V vehicles and offers a 20A current capacity, ensuring reliable and consistent operation.
- Strict Quality Control
The push-button starter switch undergoes rigorous quality control and thorough inspection before shipment, guaranteeing top-quality performance.
- Wide Application
The push button momentary switch with a black neoprene cap provides versatile functionality, making it suitable for a wide range of applications.
ASW-B05 Car Push Button Starter Switch datasheet below:
| Rating: | 50A 12VDC | Contact Resistance: | 50mΩ max |
| Electrical Life: | ≥ 10,000 Cycles | Mechanical Life: | ≥ 100,000 Cycles |
| Dielectric strength: | 1500VAC 1 minute | Operating Temperature: | -25℃~+85℃ |
| Insulation Resistance: | 100mΩ min (500VDC) | OEM or ODM: | Available |
| Weight | 0,064 kg |
|---|---|
| Dimensions | 6,5 × 3 × 3 cm |
