Straumþjófar sett (120stk.)

ABOUT THIS ITEM

• Self-Stripping electrical tap connectors – Nilight self-stripping electrical t-tap connectors make tapping into an existing wire a quick and easy job
• Versatile kit – 60 piece T-Tap Wire Connectors plus 60 pieces; Male Quick Disconnects will last for numerous wiring projects. Marine, automotive, scientific, home wiring projects – you name it
• Thick tinned copper contacts – Thicker tinned copper contacts provide maximum conductivity and prevent the wire from shorting out efficiently
• Quality t-tap connector housing – Quick splice T-Tap connectors will securely lock on the wire. Plastic housing will not open after it has been snapped on the wire
• Perfectly fitting male quick disconnects – Nylon male disconnects have been designed to lock tightly on the T-Tap connectors to prevent sliding out

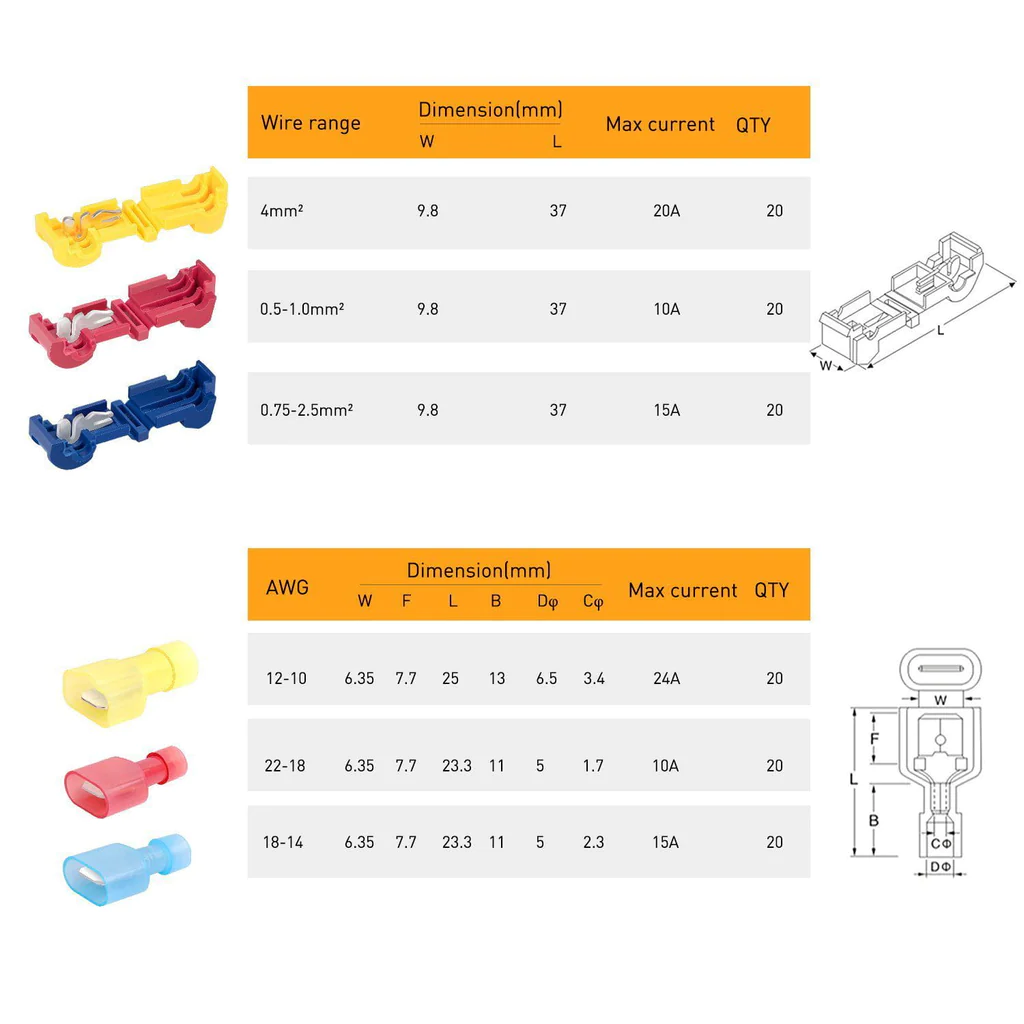

SPECIFICATIONS

Quick Splice Connector:

Red | 22-18 Gauge – Wire range (0.5-1.0mm²).

Blue |16-14 Gauge – Wire range (0.75-2.5mm²).

Yellow |12-10 Gauge – Wire range (0.5-1.0mm²).

Nylon Fully Insulated Male Spade terminals:

Red | 22-18 Gauge Wire range: 0.5-1.5mm² (Max current 10A).

Blue |16-14 Gauge Wire range: 1.5-2.5mm² (Max current 15A).

Yellow | 12-10 Gauge Wire range: 4-6mm² (Max current 24A).

FEATURES

Safety and reliable

This Self-Stripping Electrical T-Tap Spade Connectors combo makes tapping into an existing wire quick, easy, and reliable, with no wire stripping needed.

High Quality

The cores are made of true tinned copper for maximum conductivity and the strongest crimps. It prevents the wire from shorting out efficiently.

Easy Identification

Color-coded tubing makes it easy to identify the right side of the connector for every application. Red: AWG 22-18; Blue: AWG 18-14; Yellow: AWG 12-10.
