Tengi DT 2 pinna sett (DEUTSCH)

4.650 kr.

Availability: In stock

About this item

Size 16 Solid Contact: accepts 14-20 gauge wires. Current Rating: 13 Amps Continuous. IP Rating: IP67. Connector Style: Receptacle.

2 Pin DT Connectors: 2-pin electrical wire connectors are resistant to dust, dirt, moisture, salt spray, vibration, contamination, with 100% environmental sealing and highly reliable pin contact that helps eliminate wiring problems. will not lose electronic qualities or leak after installation. Optional in-line, flange or PCB mount.

Wide Application: DT connectors are by far the most popular connectors used in many automotive, industrial and racing applications. Widely used in truck, car, motorcycle, boat maintenance and DIY projects and other fields.

High Quality Material: 2 pin male and female connector plugs are made of PA66 nylon & copper (nickel plated), easy to connect and disconnect, suitable for long time use. They won’t damage the electronic quality or cause leaks after installation, ensuring dependable electrical performance.

Package Includes: 3 sets 2-pin connectors (3 pcs male plugs and 3 pcs female plugs), 6 pairs solid terminals (6 pcs pins and 6 pcs sockets), 2 pcs seal plugs. 2 Year Warranty by Nilight.

2 PIN DT Connector Kit 3 Sets Waterproof Electrical Wire Connector

DT series environmentally sealed connectors are designed for cable to cable and cable to board applications. The DT connectors are used in harsh environment applications where even a small degradation in connection may be critical. Thermoplastic housings offer a wide operating temperature range and silicone rear wire and interface seals allow the connectors to withstand conditions of extreme temperature and moisture.

Features

Sealing Plugs

Sealing Plugs

Sealing plugs prevent the cavity from entering the contaminated connector and maintain the integrity of the seal.

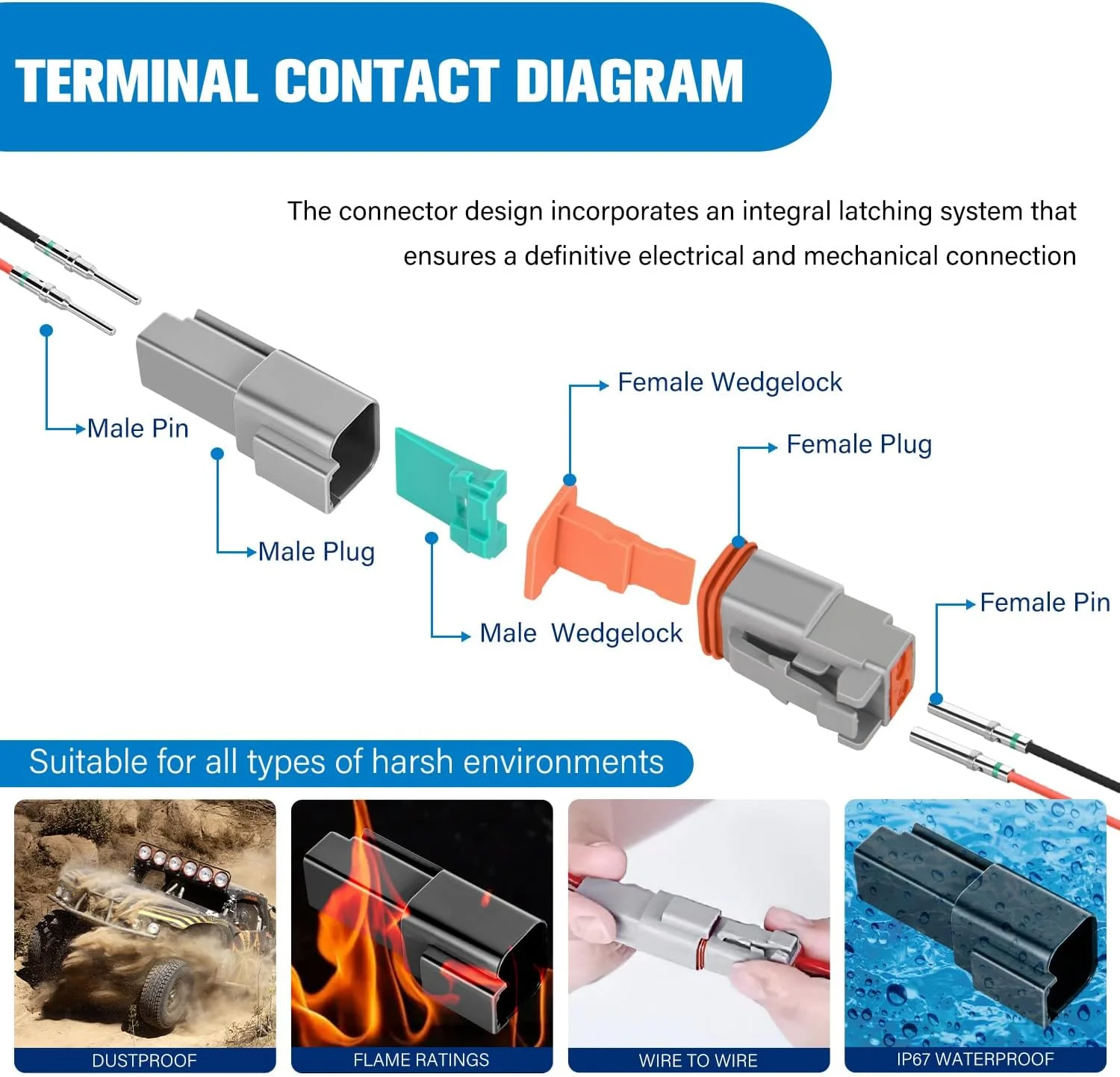

Secondary Wedgelocks

Secondary Wedgelocks

It help confirm proper contact alignment within each connector. Secondary wedgelocks are assembled at the mating interface and press into place.

2 PIN DT Connector Housings

2 PIN DT Connector Housings

Accepts Contacts: Size 16 Solid Contacts
Operating Temperature: 14°F to +176°F ((-10°C to 80°C)
Accept Wire Range: 14-20 AWG (2.50-0.50 mm²)

Size 16 Contacts

Size 16 Contacts

Contact Size: 16#
Terminal Transmits : 0 – 24 A (Low Power)
Material: Tin Bronze/Nickel plate
Current Rating: 13-Amps
Accept Wire Range:14-20 AWG

Snap-on Design

Snap-on Design

Ensure the contacts are accurately and completely inserted into the housing, easy to use.

High Quality DT Connector

IP67 Waterproof

Made of PA66 Nylon, which makes it waterproof to IP67 standard.

Reinforced Flame Retardant Nylon Material

Reinforced Flame Retardant

High temperature resistance; Abrasion resistance; High impact resistance. No cracking, chipping or leaking after 20 test cycles from 14°F to +176°F

Size 16 Solid Contacts

Superior Material

Crimp Type: 4 indent
Material: Tin Bronze/Nickel plate
We have specially treated the tail barrel to ensure that every crimp will not break.

Installations

Solid Contact Details

Comparision

Product Details

Weight 0,062 kg
Dimensions 9 × 9 × 3 cm
